AEROQUIP MATCHMATE - CODE

Description & Features

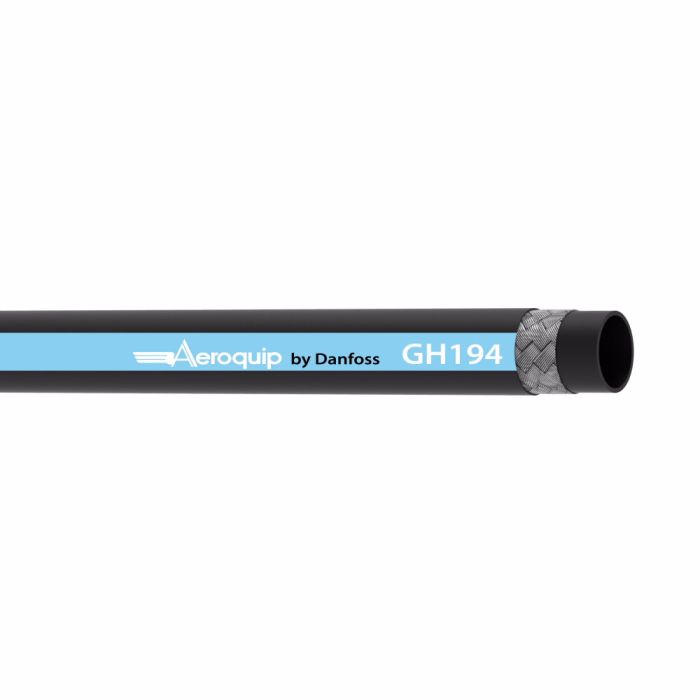

Eaton Aeroquip MatchMate - CODE hose is constructed with a AQP inner tube and elastomer cover for abrasion resistance and maximum durability in harsh operating conditions.

This blue, conductive hose is reinforced with one ply of wire braid and engineered to extend hose assembly life. The AEROQUIP MATCHMATE - CODE hose is suitable for use in hydraulic applications as well as with crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids.

It also meets SAE 100R1 Type S, ISO 1436-1 Type 1SN, and EN853 1SN certifications and is compliant with DNV, MSHA, and ABS standards. It is qualified for use with 1A, 1SA hose fittings.

SKU: GH194-16

Supplier Part Number (MPN): GH194-16RL

Alternate Part Numbers: C1LB92

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1LB92, Alternate Part Number MINO-00015X13574	Application Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids	Certifications SAE 100R1 Type S\|ISO 1436-1 Type 1SN\|EN853 1SN	Color Blue	Compliances DNV\|MSHA Approved\|ABS Certified	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 11.81	Minimum Bend Radius 11.81	Minimum Working Temperature -40	Product Width 1	Qualified Hose Fittings 1A, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH194-16	Tube Material AQP Inner tube	Product Weight 1.31 lbs

Product Questions & Answers (5)

Question by: Joyce G on Dec 24, 2025, 9:02 AM

What kind of stuff can I run through this hose? I'm thinkin' hydraulic fluid, but what else?

Answer by: Customer Support on Dec 26, 2025, 6:38 AM

This Aeroquip hose handles hydraulics, crude, fuel and lubricating oils, gasoline, water, and phosphate ester base hydraulic fluids.

Question by: Wayne T on Aug 13, 2025, 6:16 AM

got a tight spot to route hose. what’s the minimum bend radius on this GH194-16?

Answer by: Customer Support on Aug 15, 2025, 6:16 AM

For the GH194-16, the minimum bend radius is 11.81, so you will want to keep your routing at or above that to avoid kinking and premature wear.

Question by: Carl W on Apr 28, 2025, 5:21 PM

hose is rated for phosphate ester fluids? got some equipment running that stuff and trying to figure out if this'll hold up

Answer by: Customer Support on Apr 30, 2025, 6:11 AM

Phosphate ester base hydraulic fluids are listed as a compatible application for this hose. The AQP inner tube is built to handle that fluid type along with crude oil, fuel, lubricating oils, gasoline, and water-based hydraulic fluids. Rated down to negative 40 degrees for cold weather use as well, so temperature swings in unheated environments shouldn't be a problem.

Question by: Kurt H on Feb 15, 2026, 7:20 PM

hose rated for phosphate ester fluids or just standard hydraulic oil?

Answer by: Customer Support on Feb 17, 2026, 9:10 AM

Phosphate ester base hydraulic fluids are explicitly listed as compatible, along with standard hydraulic oils, crude oil, fuel, lubricating oils, gasoline, and water. The AQP inner tube handles that range without issue, so you're covered on both counts.

Question by: Pete T on Nov 12, 2025, 6:37 AM

What size is this hose, like the inside diameter?

Answer by: Customer Support on Nov 13, 2025, 10:28 AM

It's a dash size -16, so that refers to the inner diameter.
