Hose

Description & Features

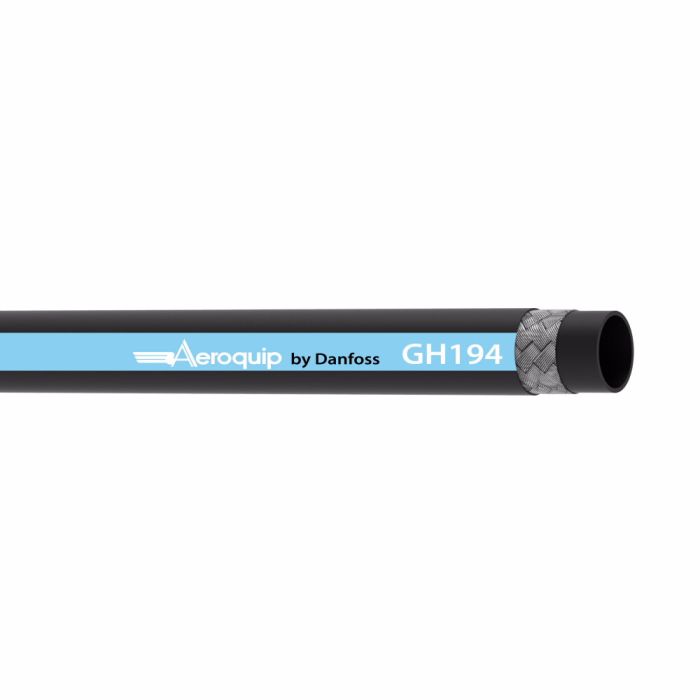

Rated for hydraulic, fuel, lubricating oil, gasoline, crude oil, water, and phosphate ester-based fluid service, this Eaton Aeroquip GH194 Series rubber hose is built for demanding industrial hydraulic applications. The -32 dash size hose features an AQP inner tube, a single-ply wire braid reinforcement, and an elastomeric cover with an embossed lay line. It carries a minimum bend radius of 24.8 inches and is rated for a working temperature floor of -40°F, with an impulse cycle life of 400,000 cycles.

Certified to ISO 1436-1 Type 1SN, EN853 1SN, and SAE 100R1 Type S, this hose also holds DNV and Msha approvals. The conductive construction supports systems with static dissipation requirements. Compatible qualified fittings are the 1A and 1Sa series. Part of the Aeroquip Matchmate system, the hose is designed to work within an engineered assembly approach intended to extend service life under sustained pressure and harsh operating conditions.

SKU: GH194-32

Supplier Part Number (MPN): GH194-32

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015X00824	Application Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids	Certifications ISO 1436-1 Type 1SN\|EN853 1SN\|SAE 100R1 Type S	Color Blue	Compliances DNV\|MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -32	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 24.80	Minimum Bend Radius 24.8	Minimum Working Temperature -40	Product Width 2	Qualified Hose Fittings 1A, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH194-32	Tube Material AQP Inner tube	Product Weight 2.81 lbs

Product Questions & Answers (3)

Question by: Carl M on Jan 10, 2026, 8:07 AM

got a tight spot to snake this -32 hose through, how much can i bend it without kinking?

Answer by: Customer Support on Jan 11, 2026, 3:26 PM

Minimum bend radius on the GH194-32 is 24.8 inches, so you want to keep your routing at or above that radius to avoid stressing the hose.

Question by: Johnny B on Aug 8, 2025, 10:37 AM

hose is rated for phosphate ester fluids? got a system running that stuff and need something that won't break down on me

Answer by: Customer Support on Aug 9, 2025, 9:44 PM

Phosphate ester-based hydraulic fluids are listed as a compatible fluid type for this hose, along with hydraulic oil, fuel, lubricating oil, gasoline, crude oil, and water. The AQP inner tube is what makes that range of fluid compatibility possible, so you should be in good shape for that application.

Question by: Melvin W on Nov 26, 2025, 6:59 AM

What kind of stuff can this hose handle besides just hydraulics?

Answer by: Customer Support on Nov 27, 2025, 1:50 PM

This hose is rated for hydraulic fluid, fuel, lubricating oil, gasoline, crude oil, water, and phosphate ester-based fluids.
