Danfoss / Eaton Aeroquip MATCHMATE Single Wire Braid

Description & Features

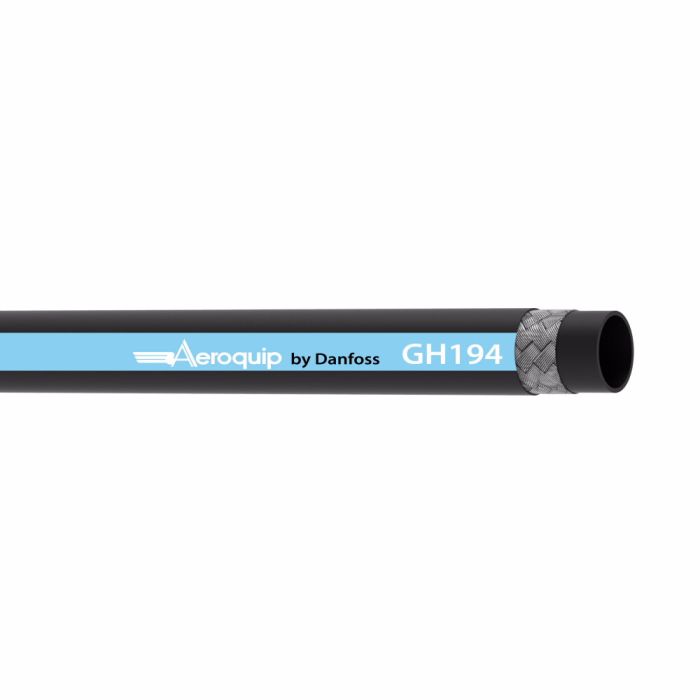

The Danfoss / Eaton Aeroquip MATCHMATE Single Wire Braid is a hydraulic braided hose designed to meet demanding technical requirements. It is crafted with robust elastomer cover material that ensures significant durability under the most challenging conditions. Engineered to handle high pressures this product is ideal for hydraulics crude fuel and lubricating oils gasoline water and phosphate ester base hydraulic fluids.

Featuring a 1-ply wire braid construction this hose exhibits outstanding impulse cycle life of 400 000 cycles. Certified to ISO 1436-1 Type 1SN SAE 100R1 Type S and EN853 1SN standards it also complies with DNV ABS Certified and MSHA Approved benchmarks.

The minimum bend radius of 3.94 inches and minimum working temperature of -40F make it adaptable for various applications. The AQP inner tube material further enhances its reliability. The product's embossed lay line style and standard abrasion resistance add to its practicality.

Supplier Part Number: GH194-4RL

MPN: EAR99

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number GH194-04, Alternate Part Number MINO-00015X13577	Application Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids.	Certifications ISO 1436-1 Type 1SN\|SAE 100R1 Type S\|EN853 1SN	Color Blue	Compliances DNV\|ABS Certified\|MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Elastomer	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 3.94	Minimum Bend Radius 3.94	Minimum Working Temperature -40	Product Width 0.25	Qualified Hose Fittings 1A, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH194-4RL	Tube Material AQP Inner tube	Product Weight 0.59 lbs

Product Questions & Answers (3)

Question by: Roy H on Dec 15, 2025, 3:07 PM

got a -4 hose run on a little hydraulic setup, how tight can i bend this one without kinkin it

Answer by: Customer Support on Dec 17, 2025, 8:20 AM

Minimum bend radius on this hose is 3.94 inches, so you want your routing to stay at or above that radius to avoid kinking and premature wear.

Question by: Tommy A on Nov 18, 2025, 9:03 PM

hose says it's good for phosphate ester hydraulic fluids, we run some pretty aggressive stuff through our lines. that gonna hold up or is this more of a light-duty setup?

Answer by: Customer Support on Nov 20, 2025, 8:12 AM

Phosphate ester base fluids are explicitly listed as a compatible fluid type for this hose, alongside hydraulics, crude, fuel and lubricating oils, gasoline, and water. The AQP inner tube material is what makes that compatibility possible, it handles a broader range of fluids than standard rubber tubes. At dash size -4 with a 1-ply wire braid construction, this isn't a light-duty product. It's rated for 400,000 impulse cycles and meets ISO 1436-1 Type 1SN, SAE 100R1 Type S, and EN853 1SN standards, so it's built to take real working conditions seriously.

Question by: Steve C on Dec 8, 2025, 3:21 PM

Reckon this hose will hold up okay for running hydraulic fluid on my tractor? Gets pretty hot out here in the summer.

Answer by: Customer Support on Dec 10, 2025, 12:44 PM

Designed to handle hydraulics, fuel, and lubricating oils, this hose is also rated for a minimum working temperature of -40F, so the summer heat shouldn't be a problem.
