Hose

Description & Features

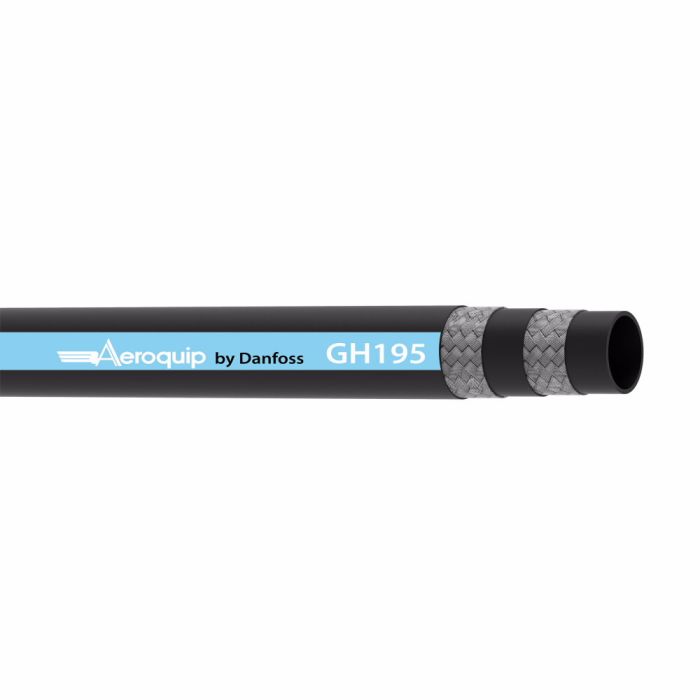

Designed for demanding hydraulic service, the Eaton Aeroquip GH195 Series hose is a -12 dash size, blue-covered rubber hose wound on a reel and built to handle hydraulic fluids, crude, fuel and lubricating oils, gasoline, water, and phosphate ester base hydraulic fluids. The AQP inner tube pairs with a two-ply high-tensile steel cord braid reinforcement and an elastomer cover to deliver robust pressure capacity and an impulse cycle life rated at 400,000 cycles.

Conductive construction and a minimum bend radius of 9.49 inches support reliable routing in tight hydraulic circuits, with a minimum working temperature of -40°F/°C. Certifications include SAE 100R2AT Type S, EN853 2SN, and ISO 1436-1 Type 2SN. Compliance listings cover Msha, Bureau Veritas, USCG, ABS, EN45545, and DNV, making this hose a strong fit for marine, mining, and industrial fluid power applications. Compatible fittings are the 1A and 1SA series. Lay line style is embossed.

SKU: GH195-12RL

Supplier Part Number (MPN): GH195-12RL

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015F38216	Application Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids.	Certifications EN853 2SN\|SAE 100R2AT Type S\|ISO 1436-1 Type 2SN	Color Blue	Compliances MSHA Approved\|BV\|USCG\|ABS Certified\|EN45545\|DNV	Conductivity 30	Construction 2-ply braid	Cover Material Elastomer	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 9.49	Minimum Bend Radius 9.49	Minimum Working Temperature -40	Product Width 0.75	Qualified Hose Fittings 1A, 1SA	Reinforcement Material High-tensile steel cords	Sub Brand Aeroquip	Supplier Part Number GH195-12RL	Tube Material AQP Inner tube	Product Weight 1.41 lbs

Product Questions & Answers (2)

Question by: Freddie E on Dec 26, 2025, 8:28 PM

What kind of fluids can this hose handle?

Answer by: Customer Support on Dec 28, 2025, 8:00 PM

This hose is good for hydraulic fluids, crude, fuel and lubricating oils, gasoline, water, and phosphate ester base hydraulic fluids.

Question by: Dean E on Aug 26, 2025, 4:56 PM

hose says it's rated for phosphate ester fluids -- we run a lot of that in our press circuits. it gonna hold up okay or is that more of a secondary fluid type for this thing?

Answer by: Customer Support on Aug 28, 2025, 9:04 AM

Phosphate ester base hydraulic fluids are listed right alongside standard hydraulic oil and fuel as intended service fluids for this hose. The AQP inner tube is what makes that possible since it's built to handle that fluid family without degrading. Running it in a press circuit is a solid fit, especially given the two-ply high-tensile steel braid reinforcement behind it and an impulse cycle life of 400,000 cycles.
