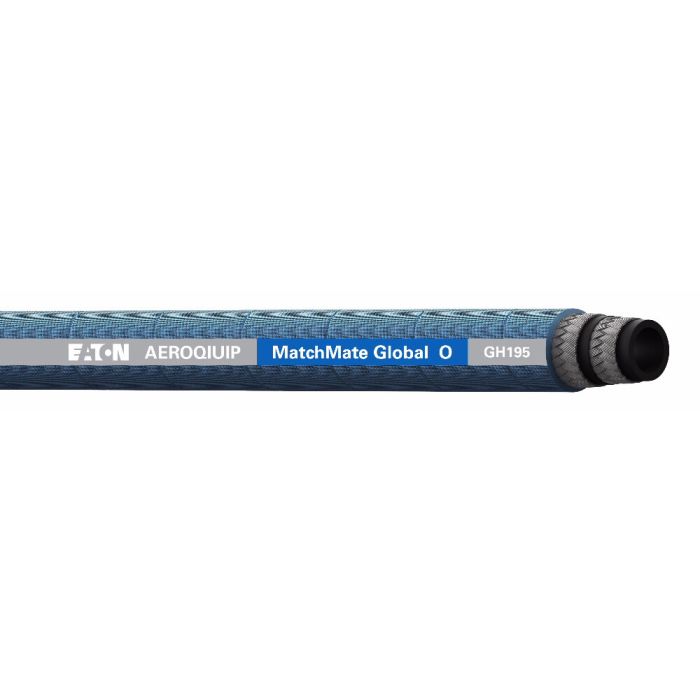

Aeroquip GH195-16 50 Foot Piece

Description & Features

Rated for hydraulic system service with petroleum-based, fire-resistant, and water-base fluids, as well as fuel and lubricating applications, the Aeroquip GH195-16 50 Foot Piece is a -16 dash size rubber hose built for demanding industrial environments. Its elastomer tube and cover are reinforced with two plies of high-tensile steel cords, meeting SAE 100R2AT Type S, ISO 1436-1 Type 2SN, and EN853 2SN standards.

Conductive construction and a minimum bend radius of 12.01 inches support reliable routing in tight installations, while the blue elastomer cover provides a working temperature floor of -40°F. Compliant with MSHA, USCG, and DNV requirements, this hose is rated for 400,000 impulse cycles, reflecting the robust construction needed for high-pressure hydraulic circuits with extended service life expectations.

SKU: GH195-16-06000

Supplier Part Number (MPN): GH195-16-06000

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015X13590	Application Hydraulic system service with petroleum, fireresistant and waterbase fluids, fuel and lubricating systems.	Certifications SAE 100R2AT Type S\|ISO 1436-1 Type 2SN\|EN853 2SN	Color Blue	Compliances MSHA Approved\|USCG\|DNV	Conductivity 30	Construction 2-ply braid	Cover Material Elastomer	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Ink Transfer	Minimum Bend Radius 12.01	Minimum Bend Radius 12.01	Minimum Working Temperature -40	Product Width 1.52	Reinforcement Material High-tensile steel cords	Supplier Part Number GH195-16-06000	Tube Material Elastomer	Product Weight 48.50 lbs

Product Questions & Answers (1)

Question by: Dale S on Mar 5, 2026, 12:10 PM

What kind of fluids can this hose handle, besides just regular hydraulic oil?

Answer by: Customer Support on Mar 6, 2026, 4:08 PM

This hose is rated for hydraulic systems using petroleum-based fluids, fire-resistant fluids, and even water-based fluids. It also works for fuel and lubricating systems.
