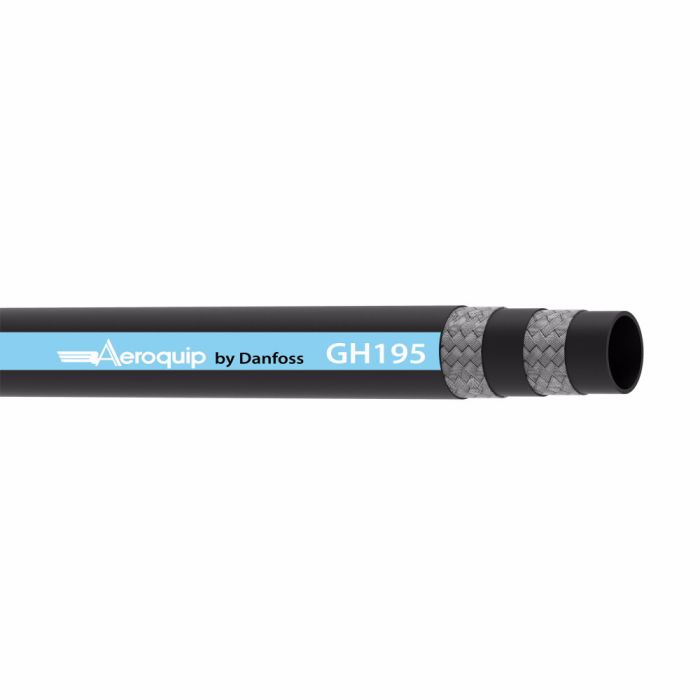

AEROQUIP GH195-20 50 FOOT PIECE

Description & Features

Rated for hydraulic system service with petroleum-based, fire-resistant, and water-base fluids, as well as fuel and lubricating systems, this -20 dash size hose is built for demanding industrial applications. The Aeroquip GH195-20 50 Foot Piece features a dual-elastomer construction, elastomer tube and cover, reinforced with two plies of high-tensile steel cord braid, meeting SAE 100R2AT Type S, EN853 2SN, and ISO 1436-1 Type 2SN certifications.

The blue elastomer cover carries standard abrasion resistance with an ink transfer lay line, and the hose is rated conductive for static-dissipation requirements. Compatible with crimp, 1A, and skive nipple fittings, it supports a minimum bend radius of 16.5 inches, a minimum working temperature of -40°F, and a validated impulse cycle life of 400,000 cycles. Approved by USCG, DNV, and MSHA, this hose is well-suited for marine, mining, and heavy industrial environments where consistent performance under high-pressure conditions is required.

SKU: GH195-20-06000

Supplier Part Number (MPN): GH195-20-06000

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Standard
Conductivity
Conductive
Cover Material
Chlorinated Polyethylene
Dash Size
20
For Use With
TTC/Z Series Hose Fittings
Hose Color
Black
Hose Type
Conductive
Impulse Cycle
200000
Inside Diameter
1-1/4 in
Lay Line Style
Ink Transfer
Package Form
Cut Length
Reinforcement
2-Wire Braided Brass-Plated Steel Wire
Resistance Properties
Abrasion
Series
GH195 Series
Tube Material
Chlorinated Polyethylene

Similar Products

Model Number Nominal Size Dash Size Length Price Action
AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.75 Inch ID, Up To 3000.00 PSI

GH195-12 AQP Hi-Impulse SAE 100R2AT Hose

3/4 in

12

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.63 Inch ID, Up To 3250.00 PSI

GH195-10 AQP Hi-Impulse SAE 100R2AT Hose

10

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.25 Inch ID, Up To 5750.00 PSI

GH195-4 AQP Hi-Impulse SAE 100R2AT Hose

1/4 in

04

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 1.00 Inch ID, Up To 2500.00 PSI

GH195-16 AQP Hi-Impulse SAE 100R2AT Hose

1 in

16

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.50 Inch ID, Up To 4250.00 PSI

GH195-8 AQP Hi-Impulse SAE 100R2AT Hose

1/2 in

08

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.38 Inch ID, Up To 5000.00 PSI

GH195-6 AQP Hi-Impulse SAE 100R2AT Hose

3/8 in

06

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 1.25 Inch ID, Up To 2250.00 PSI

GH195-20 AQP Hi-Impulse SAE 100R2AT Hose

20

1 ft

Aeroquip 50FT CUT Length Hose

GH195-6-06000

3/8 in

06

Aeroquip 100FT CUT Length Hose

GH195-6-12000

3/8 in

06

Aeroquip 100FT CL Hose

GH195-8-12000

1/2 in

08

Aeroquip 100FT CL Hose

GH195-12-12000

3/4 in

12

Aeroquip GH195-16 50 Foot Piece

GH195-16-06000

1 in

16

AEROQUIP 100FT CUT LENGTH HOSE

GH195-16-12000

1 in

16

Hose

GH195-24

24

1 ft

AEROQUIP CUT LENGTH HOSE 50FT

GH195-24-06000

24

Aeroquip MATCHMATE - Code MM

GH195-32

32

1 ft

AEROQUIP CUT LENGTH HOSE

GH195-32-06000

32

Product Questions & Answers (1)

Question by: Denise R on Feb 3, 2026, 1:43 PM
Reckon this hose would hold up okay in a mine?
Answer by: Customer Support on Feb 4, 2026, 2:52 PM
Absolutely. This hose is MSHA approved, meaning it's passed muster for use in mining environments.
