Hose

Description & Features

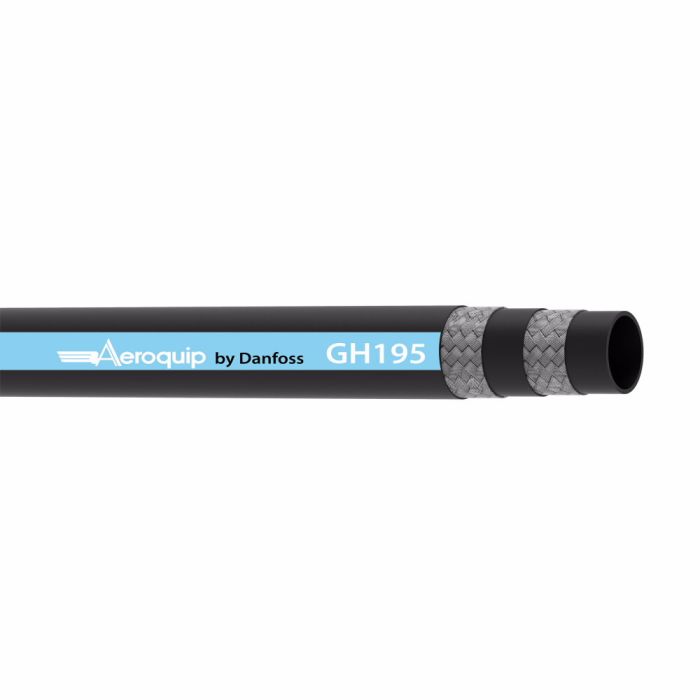

The Aeroquip by Danfoss / Eaton GH195 Series Rubber Hydraulic Braided Hose offers exceptional robustness and durability under extreme conditions. Engineered with high-tensile steel cords and a two-ply braid construction this hose is capable of withstanding the highest pressures encountered in hydraulic systems. The blue elastomer cover material provides standard abrasion resistance ensuring longevity even in demanding environments.

Designed for use with hydraulics crude fuel and lubricating oils gasoline water and phosphate ester-based hydraulic fluids this hose is compliant with standards such as DNV EN45545 MSHA ABS BV and USCG certifications. It is also qualified for use with TTC and 1SA hose fittings making it versatile across a range of industrial applications.

Features include a minimum bend radius of 20 and an impressive impulse cycle life of 400 000 cycles. The AQP inner tube enhances compatibility and the embossed lay line style ensures easy identification. The hose also meets EN853 2SN ISO 1436-1 Type 2SN and SAE 100R2AT Type S certifications further validating its high-quality and dependable design.

Supplier Part Number: GH195-24

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015J24693	Application Hydraulics, crude, fuel and lubricating oils, gasoline, water and phosphate ester base hydraulic fluids	Certifications EN853 2SN\|ISO 1436-1 Type 2SN\|SAE 100R2AT Type S	Color Blue	Compliances DNV\|EN45545\|MSHA Approved\|ABS Certified\|BV\|USCG	Conductivity 30	Construction 2-ply braid	Cover Material Elastomer	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 20	Minimum Bend Radius 20	Minimum Working Temperature -40	Product Width 1.50	Qualified Hose Fittings TTC, 1SA	Reinforcement Material High-tensile steel cords	Sub Brand Aeroquip	Supplier Part Number GH195-24	Tube Material AQP Inner tube	Product Weight 3.32 lbs

Product Questions & Answers (3)

Question by: Cody L on Nov 6, 2025, 3:14 PM

got a GH195-24 in mind. what all fluids is it actually ok with?

Answer by: Customer Support on Nov 8, 2025, 10:43 AM

For fluid compatibility, the GH195 Series is rated for hydraulics, crude, fuel and lubricating oils, gasoline, water, and phosphate ester based hydraulic fluids. It uses an AQP inner tube, which is part of what supports that range.

Question by: Daryl A on Feb 14, 2026, 3:31 PM

Reckon this hose will hold up alright if I'm runnin' hydraulic fluid through it pretty regular?

Answer by: Customer Support on Feb 16, 2026, 8:56 AM

Engineered for durability, this hose is built to handle hydraulic fluid, crude, fuel, lubricating oils, gasoline, water and phosphate ester-based hydraulic fluids.

Question by: Todd H on Aug 8, 2025, 11:29 AM

What kind of fluids can this hose handle? Got a mixed system running hydraulic oil and some gasoline lines and tryin to figure out if one hose can cover both.

Answer by: Customer Support on Aug 10, 2025, 9:55 AM

Crude oil, fuel and lubricating oils, gasoline, water, standard hydraulic fluids, and phosphate ester-based hydraulic fluids are all listed compatible media for this hose. So yes, a system running both hydraulic oil and gasoline lines could use this same hose across both applications without needing to swap to a different product.
