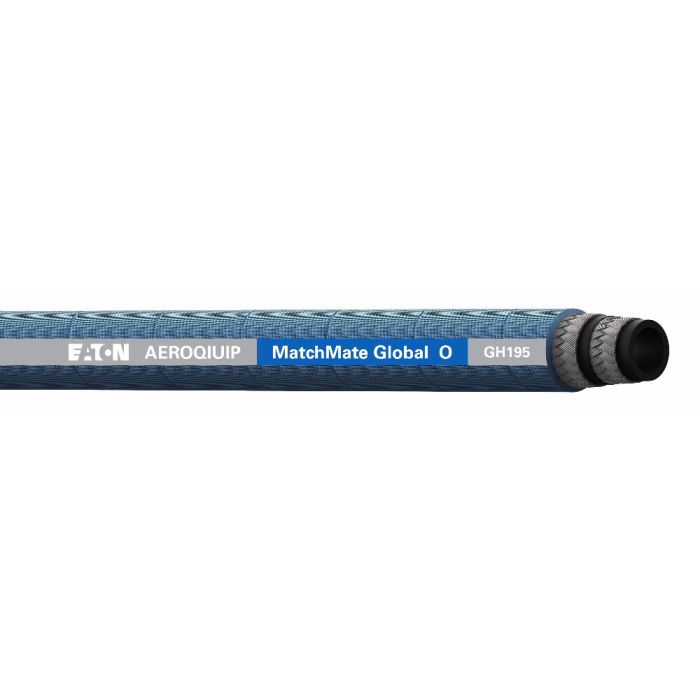

Aeroquip 50FT CUT Length Hose

Description & Features

This Aeroquip 50FT CUT Length Hose is part of the GH195 series, designed for demanding hydraulic applications. Constructed with a 2-ply braid and elastomer cover, this hose offers standard abrasion resistance and maximum durability in harsh conditions. Its robust construction ensures it can withstand high pressures, extending hose assembly life.

The Aeroquip hose is suitable for hydraulic systems using petroleum, fire-resistant, and water-based fluids, as well as fuel and lubricating systems. It meets SAE 100R2AT Type S, ISO 1436-1 Type 2SN, and EN853 2SN certifications and is USCG, DNV, and MSHA approved. Featuring a blue elastomer cover, this -6 dash size hose has a minimum bend radius of 5 inches and operates in temperatures as low as -40 degrees. It is designed for crimp, 1A, and skive nipple qualified hose fittings.

SKU: GH195-6-06000

Supplier Part Number (MPN): GH195-6-06000

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Standard
Conductivity
Conductive
Cover Material
Chlorinated Polyethylene
Dash Size
06
For Use With
TTC/Z Series Hose Fittings
Hose Color
Black
Hose Type
Conductive
Impulse Cycle
200000
Inside Diameter
0.38 in
Lay Line Style
Ink Transfer
Nominal Size
3/8 in
Package Form
Cut Length
Reinforcement
2-Wire Braided Brass-Plated Steel Wire
Resistance Properties
Abrasion
Series
GH195 Series
Tube Material
Chlorinated Polyethylene

Similar Products

Model Number Nominal Size Dash Size Length Price Action
AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.75 Inch ID, Up To 3000.00 PSI

GH195-12 AQP Hi-Impulse SAE 100R2AT Hose

3/4 in

12

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.63 Inch ID, Up To 3250.00 PSI

GH195-10 AQP Hi-Impulse SAE 100R2AT Hose

10

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.25 Inch ID, Up To 5750.00 PSI

GH195-4 AQP Hi-Impulse SAE 100R2AT Hose

1/4 in

04

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 1.00 Inch ID, Up To 2500.00 PSI

GH195-16 AQP Hi-Impulse SAE 100R2AT Hose

1 in

16

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.50 Inch ID, Up To 4250.00 PSI

GH195-8 AQP Hi-Impulse SAE 100R2AT Hose

1/2 in

08

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 0.38 Inch ID, Up To 5000.00 PSI

GH195-6 AQP Hi-Impulse SAE 100R2AT Hose

3/8 in

06

1 ft

AQP Hi-Impulse Double Wire Braid Blue SAE 100R2AT Hose, 1.25 Inch ID, Up To 2250.00 PSI

GH195-20 AQP Hi-Impulse SAE 100R2AT Hose

20

1 ft

Aeroquip 100FT CUT Length Hose

GH195-6-12000

3/8 in

06

Aeroquip 100FT CL Hose

GH195-8-12000

1/2 in

08

Aeroquip 100FT CL Hose

GH195-12-12000

3/4 in

12

Aeroquip GH195-16 50 Foot Piece

GH195-16-06000

1 in

16

AEROQUIP 100FT CUT LENGTH HOSE

GH195-16-12000

1 in

16

AEROQUIP GH195-20 50 FOOT PIECE

GH195-20-06000

20

Hose

GH195-24

24

1 ft

AEROQUIP CUT LENGTH HOSE 50FT

GH195-24-06000

24

Aeroquip MATCHMATE - Code MM

GH195-32

32

1 ft

AEROQUIP CUT LENGTH HOSE

GH195-32-06000

32

Product Questions & Answers (1)

Question by: Pete S on Aug 14, 2025, 10:09 AM
How flexible is this hose, really? I'm working in tight spots.
Answer by: Customer Support on Aug 16, 2025, 6:42 AM
The minimum bend radius on this Aeroquip hose is 5 inches, so it'll give you some flex in close quarters.
