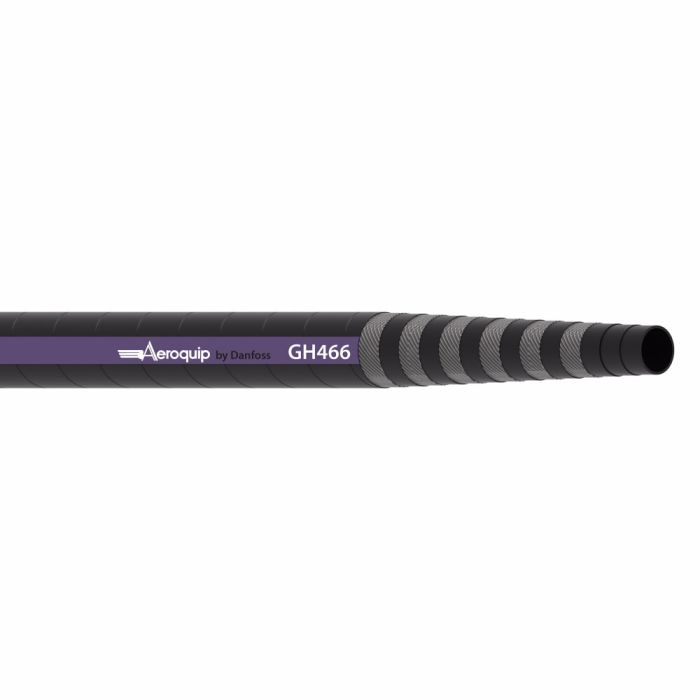

AEROQUIP HOSE

Description & Features

Designed for high-pressure hydraulic systems, the Aeroquip Hose is an exceptional choice for applications requiring consistent performance with petroleum-based fluids. Its robust construction features a 6-spiral steel reinforcement, ensuring maximum durability under the harshest conditions. The abrasion-resistant Dura-Tuff cover enhances longevity, while the conductive synthetic rubber tube material ensures efficient fluid conveyance.

This hose meets the rigorous standards of SAE 100R15 and is compliant with various certifications, including ABS, LR, MSHA, EN45545, BV, and DNV, assuring quality and reliability. With a minimum bend radius of 20.8 inches, it is versatile for complex routing in industrial settings. The Aeroquip Hose is engineered to extend the life of hose assemblies, making it a reliable component in demanding environments.

SKU: GH466-24

Supplier Part Number (MPN): GH466-24

Specifications

Abrasion Resistance 28	Application High pressure hydraulic systems with constant high working pressure for use with petroleum based fluids.	Certifications SAE 100R15	Color Black	Compliances ABS Certified\|LR\|MSHA Approved\|EN45545\|BV\|DNV	Conductivity 30	Construction 6 Spiral	Cover Material Dura-Tuff	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 20.80	Minimum Bend Radius 20.8	Minimum Working Temperature -40	Product Width 1.50	Qualified Hose Fittings GH21466, GH19106, 1Z, 1W, 6S, 1WB	Reinforcement Material Steel	Sub Brand Aeroquip	Supplier Part Number GH466-24	Tube Material Synthetic Rubber	Product Weight 4.16 lbs

Product Questions & Answers (1)

Question by: Pete S on Apr 8, 2025, 6:08 AM

What kind of pressures can this hose handle? I'm running some pretty stout hydraulic equipment.

Answer by: Customer Support on Apr 9, 2025, 4:02 PM

Designed for high-pressure hydraulic systems, this Aeroquip hose is made to hold up even with constant high working pressure when you're using petroleum-based fluids.
