HOSE 6-SPRL

Description & Features

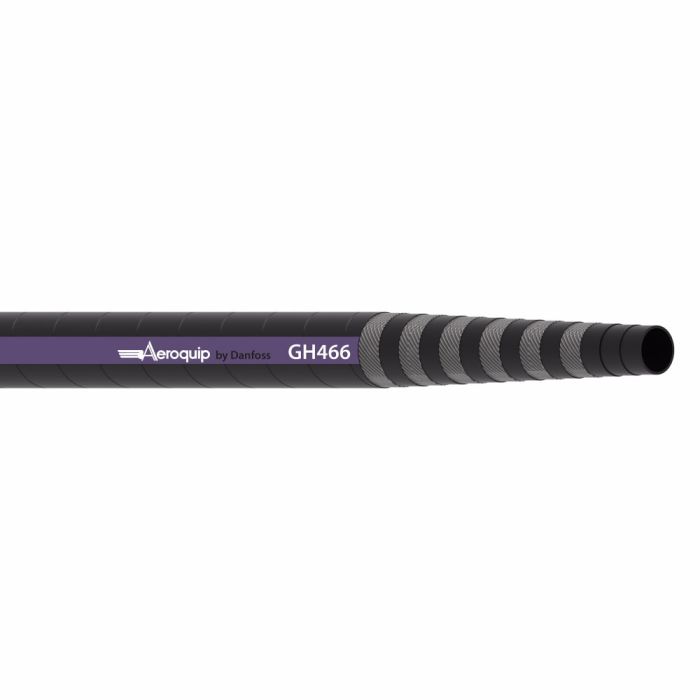

Rated to SAE 100R15 and built with a six-spiral steel reinforcement, this Eaton Aeroquip GH466 Series rubber hydraulic hose is designed for high-pressure hydraulic systems operating with petroleum-based fluids under constant working pressure. The dash -32 size carries a minimum bend radius of 24.8 inches and a synthetic rubber inner tube, with an outer Dura-Tuff cover that provides premium abrasion resistance in demanding environments.

Construction is conductive and the hose meets multiple international compliance standards, including Bv, Dnv, En45545, Lr, Msha Approved, and Abs Certified, making it suitable for marine, mining, and rail-adjacent applications. Compatible qualified fittings include GH21466, GH19106, 1Z, 1W, 6S, and 1WB. The system-engineered design is intended to extend overall hose assembly service life across harsh operating conditions, with a rated minimum working temperature of -40°F.

SKU: GH466-32

Supplier Part Number (MPN): GH466-32

Specifications

Abrasion Resistance Premium	Conductivity Conductive	Cover Material Chloroprene	Dash Size 32	For Use With 4S/6S Series Fittings	Hose Color Black	Hose Type Conductive	Impulse Cycle 1000000	Lay Line Style Ink Transfer	Package Form Bulk	Reinforcement 6-Wire Spiral Brass-Plated Steel Wire	Resistance Properties Abrasion	Series GH466 Series	Tube Material Nitrile

Product Questions & Answers (3)

Question by: Ray F on Mar 6, 2026, 9:33 AM

got a tight spot to snake this hose through. what’s the minimum bend radius on the -32 size?

Answer by: Customer Support on Mar 8, 2026, 6:34 AM

For the dash -32 size, the minimum bend radius is 24.8 inches, so you will want to keep your routing at or above that to avoid kinking or stressing the reinforcement.

Question by: Floyd P on Dec 12, 2025, 4:03 PM

what certifications does this hose carry, and is it rated for marine or mining use?

Answer by: Customer Support on Dec 13, 2025, 5:25 PM

Six compliance standards are listed for this hose: BV, DNV, EN45545, LR, MSHA Approved, and ABS Certified. That combination covers marine classification, mining safety, and rail-adjacent environments, so yes, it qualifies across all three. The base rating is SAE 100R15, and the six-spiral steel reinforcement backs that up for constant high-pressure hydraulic service with petroleum-based fluids.

Question by: Sheila S on Sep 29, 2025, 10:28 AM

What kind of pressure can this hose handle for hydraulics?

Answer by: Customer Support on Oct 1, 2025, 10:25 AM

This Eaton Aeroquip GH466 Series hose is rated to SAE 100R15 standards, making it suitable for high-pressure hydraulic systems that consistently operate under high working pressures with petroleum-based fluids.
