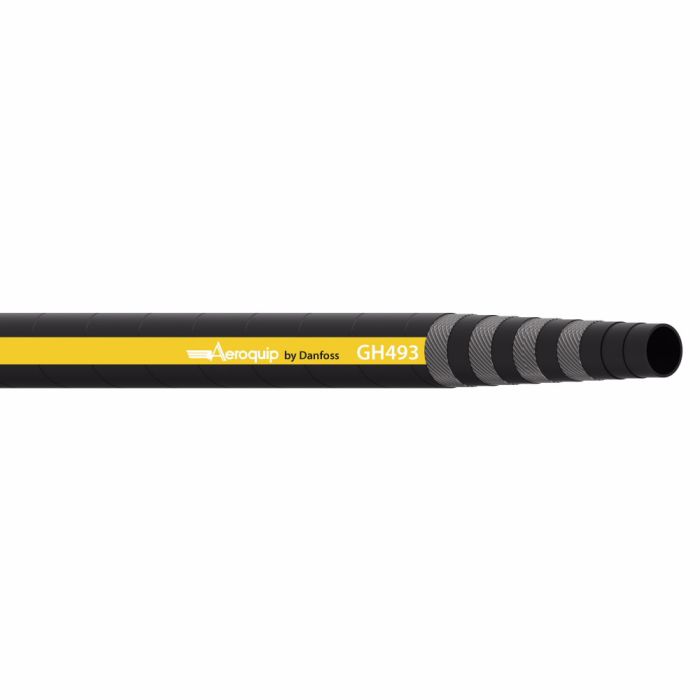

Aeroquip CUT Length Hose 50FT GH493-12 A

Rated for use in hydraulic, pneumatic, and oil transfer systems, this -12 dash size rubber spiral hose is built to handle the demanding pressure cycles common in heavy industrial and mobile hydraulic applications. The Aeroquip CUT Length Hose 50FT GH493-12 A features a four-spiral wire reinforcement with a synthetic rubber tube and cover, offering reliable performance across a working temperature range starting at -40°F.

Certified to SAE 100R12, En856 4Sp, and En856 Type R12, the hose carries compliance approvals from Dnv, Uscg, and Msha. The conductive construction and embossed lay line support installation accuracy, while the 9.45-inch minimum bend radius and 1,000,000-cycle impulse life reflect a design suited for extended service under repetitive high-pressure conditions.

SKU: GH493-12-06000

Supplier Part Number (MPN): GH493-12-06000
