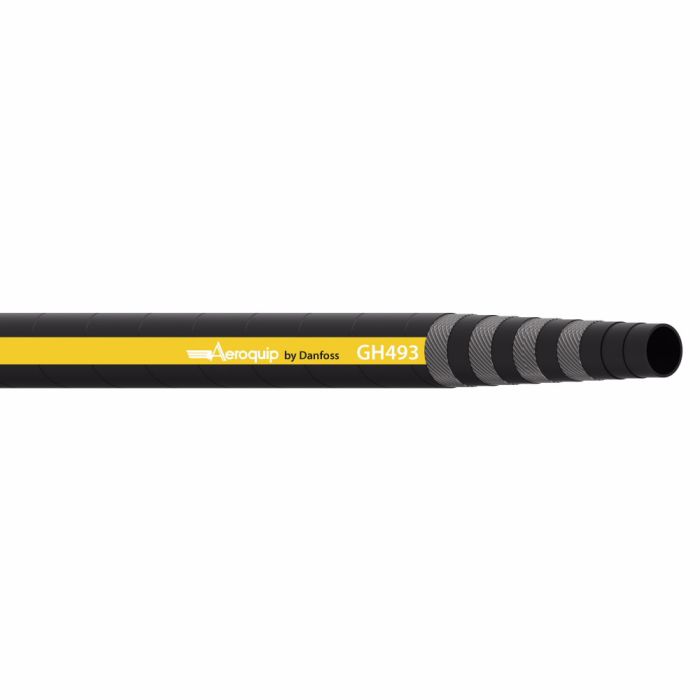

main product photo

Aeroquip CUT Length Hose 50FT GH493-16 A

Ask A Question

Description & Features

Designed for high-pressure hydraulic service with petroleum and water-based fluids, this 4-spiral wire-reinforced hose delivers reliable performance across demanding industrial applications. The synthetic rubber tube and cover are built to handle continuous exposure to harsh operating conditions, with a conductive construction and a minimum bend radius of 11.81 inches at -16 dash size.

The Aeroquip CUT Length Hose 50FT GH493-16 A meets SAE 100R12 and EN856 4SP standards, and carries ABS, USCG, DNV, and MSHA approvals, making it suitable for use in marine, mining, and heavy industrial environments. Rated for 1,000,000 impulse cycles, it is engineered for extended hose assembly service life. Compatible fittings are 4S series. The embossed lay line aids in routing and identification during assembly.

SKU: GH493-16-06000

Supplier Part Number (MPN): GH493-16-06000

Alternate Part Numbers: C1GG84

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number C1GG84, Alternate Part Number MINO-00015X13617
Application
Hydraulic system service with petroleum and water based fluids
Certifications
ABS|EN856 Type R12|SAE 100R12|EN856 4SP
Color
Black
Compliances
USCG|DNV|MSHA Approved
Conductivity
30
Construction
4 Spiral
Cover Material
Synthetic Rubber
Dash Size
-16
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
1000000 cycle
Language
English
Lay Line Style
Embossed
Minimum Bend Radius
11.81
Minimum Bend Radius
11.81
Minimum Working Temperature
-40
Product Width
1.52
Qualified Hose Fittings
4S
Reinforcement Material
Wire
Supplier Part Number
GH493-16-06000
Tube Material
Synthetic Rubber
Product Weight
60.00 lbs

Related Documents

Product Questions & Answers (1)

Question by: Sheila R on Feb 26, 2026, 12:22 PM
What kind of fittings go with this hose? Just wanna make sure I get the right ones.
Answer by: Customer Support on Feb 27, 2026, 7:37 PM
It's qualified for use with 4S series fittings. Using the correct fittings will ensure a reliable and leak-free connection.
