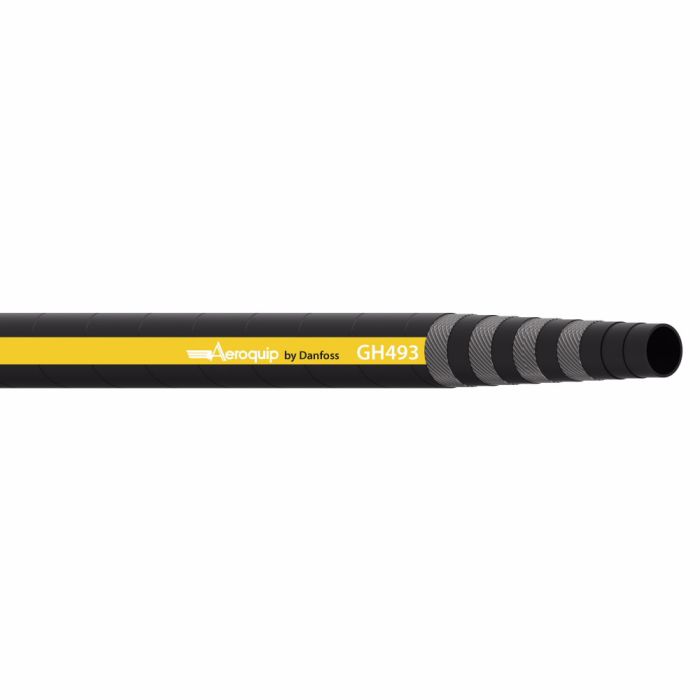

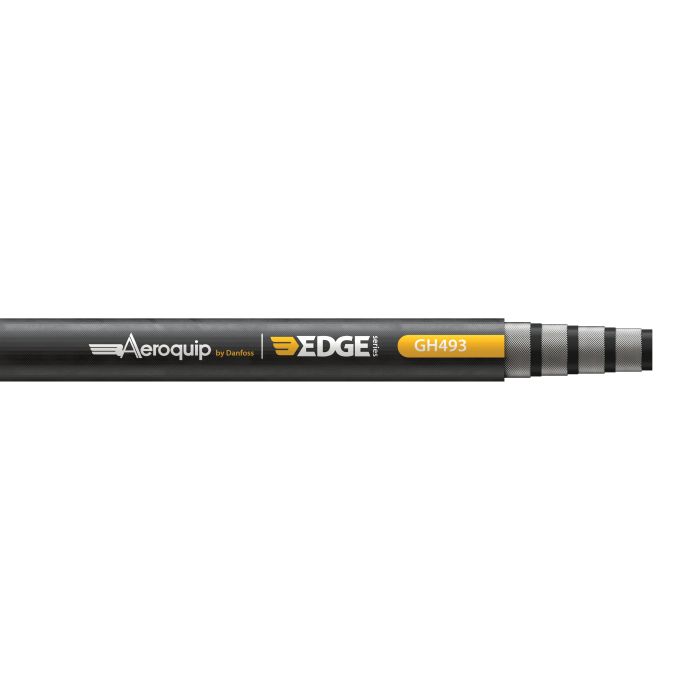

AEROQUIP 100 FT CUT LENGTH HOSE GH493-16

Ask A Question

Description & Features

The Aeroquip 100 FT CUT LENGTH HOSE GH493-16 is suitable for hydraulic system service with petroleum and water based fluids. Constructed with a synthetic rubber tube and synthetic rubber cover, this hose features four spiral wire reinforcement for maximum durability in demanding operating conditions.

This Aeroquip by Danfoss / Eaton GH493 Series hose is MSHA approved and meets USCG and DNV compliances. It has been tested to 1,000,000 impulse cycles and has a minimum bend radius of 11.81. Certifications include EN856 4SP, EN856 Type R12, ABS, and SAE 100R12.

SKU: GH493-16-12000

Supplier Part Number (MPN): GH493-16-12000

Specifications

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number MINO-00015X13618
Application
Hydraulic system service with petroleum and water based fluids
Certifications
EN856 4SP|EN856 Type R12|ABS|SAE 100R12
Color
Black
Compliances
MSHA Approved|USCG|DNV
Conductivity
30
Construction
4 Spiral
Cover Material
Synthetic Rubber
Dash Size
-16
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Impulse Cycle Life
1000000 cycle
Language
English
Lay Line Style
Embossed
Minimum Bend Radius
11.81
Minimum Bend Radius
11.81
Minimum Working Temperature
-40
Product Width
1.52
Qualified Hose Fittings
4S
Reinforcement Material
Wire
Supplier Part Number
GH493-16-12000
Tube Material
Synthetic Rubber
Product Weight
120.00 lbs

Related Documents

Product Questions & Answers (1)

Question by: Howard T on May 31, 2025, 11:53 AM
Reckon this hose'll hold up okay in a hydraulic setup on a farm tractor? We run them pretty hard.
Answer by: Customer Support on Jun 2, 2025, 7:38 AM
This Aeroquip hose is constructed with four spiral wire reinforcement layers specifically to provide maximum durability under harsh operating conditions, so it should withstand high pressures and demanding use.
