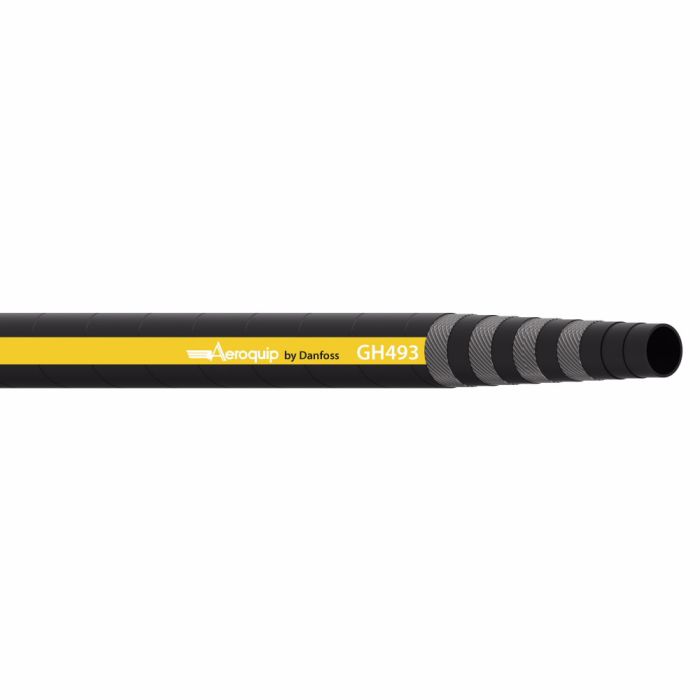

AEROQUIP CUT LENGTH HOSE 50FT GH493-24 A

Description & Features

This Aeroquip CUT LENGTH HOSE is a flexible, durable solution for hydraulic, pneumatic, and oil transfer systems. Constructed with four spiral wire reinforcement layers and a synthetic rubber cover, the hose offers standard abrasion resistance and is suitable for harsh operating conditions.

The hose is certified to ABS, SAE 100R12, EN856 4SP, and EN856 Type R12 standards and is compliant with DNV, MSHA, and USCG requirements. It features an embossed lay line style and is conductive. This -24 dash size hose has a minimum bend radius of 19.68 inches and can withstand minimum working temperatures of -40 degrees.

SKU: GH493-24-06000

Supplier Part Number (MPN): GH493-24-06000

Alternate Part Numbers: C1GE42

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1GE42, Alternate Part Number MINO-00015X16291	Application Suitable for use in hydraulic, pneumatic & oil transfer systems	Certifications ABS\|SAE 100R12\|EN856 4SP\|EN856 Type R12	Color Black	Compliances DNV\|MSHA Approved\|USCG	Conductivity 30	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -24	Brand DANFOSS POWER - DNU SEE 95486	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 1000000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 19.68	Minimum Bend Radius 19.68	Minimum Working Temperature -40	Product Width 2.16	Reinforcement Material Wire	Supplier Part Number GH493-24-06000	Tube Material Synthetic Rubber	Product Weight 101.50 lbs

Product Questions & Answers (1)

Question by: Shawn J on Dec 5, 2025, 5:26 PM

What kind of pressures can this hose handle without bustin'?

Answer by: Customer Support on Dec 7, 2025, 8:46 AM

Constructed with four spiral wire reinforcement layers, this hose is built to withstand very high pressures in demanding hydraulic applications.
