AEROQUIP HOSE

Description & Features

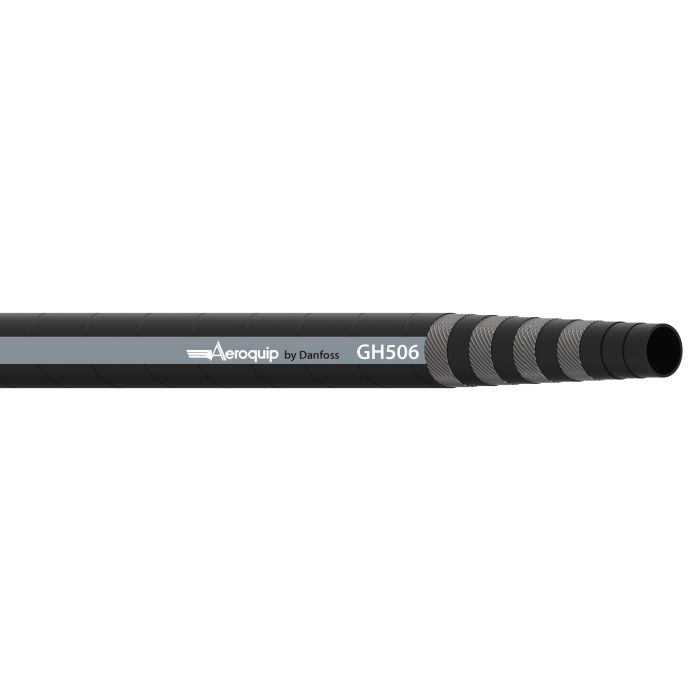

Eaton Aeroquip GH506 Series hose is designed for hydraulic systems using petroleum and water-glycol based fluids, lubricating oils, and water. This AEROQUIP HOSE features a synthetic rubber tube and synthetic rubber cover, along with four spiral wire reinforcement layers.

The hose is constructed to withstand high pressures and provide maximum durability in harsh operating conditions, extending the service life of hose assemblies. It meets EN856 4SH and ISO 3862 Type 4SH certifications and is compliant with LR, ABS, EN45545, MED, BV, MSHA, DNV, and RINA standards. With a -12 dash size, it maintains a minimum bend radius of 11.02 inches and operates in temperatures ranging from -40 degrees.

SKU: GH506-12

Supplier Part Number (MPN): GH506-12

Alternate Part Numbers: C1FN47

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1FN47	Application Hydraulic systems with petroleum and water-glycol based fluids, for lubricating oils and water	Certifications EN856 4SH\|ISO 3862 Type 4SH	Color Black	Compliances LR\|ABS Certified\|EN45545\|MED\|BV\|MSHA Approved\|DNV\|RINA\|BWB	Conductivity 30	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 2000000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 11.02	Minimum Bend Radius 11.02	Minimum Working Temperature -40	Product Width 0.75	Qualified Hose Fittings 1W, 6S	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH506-12	Tube Material Synthetic Rubber	Product Weight 2.45 lbs

Product Questions & Answers (1)

Question by: Frank P on Sep 18, 2025, 10:02 AM

Four spiral wire layers on this thing, does that mean it can hold up to some serious pressure, or is that more of a durability thing for rough conditions?

Answer by: Customer Support on Sep 20, 2025, 8:31 AM

Four-spiral wire construction is what puts this hose in the high-pressure category. It's built to handle the kind of system pressures that would tear up a two-braid hose pretty quick. The wire reinforcement also adds to overall robustness, so it holds up better when it's getting knocked around or flexed repeatedly. The 2,000,000 impulse cycle rating backs that up, this isn't a light-duty assembly.
