AEROQUIP HOSE

Description & Features

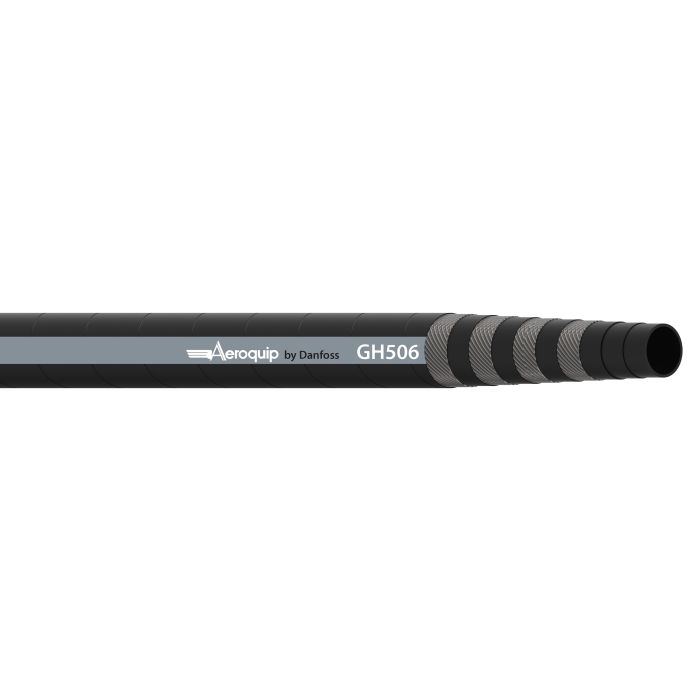

Designed for demanding hydraulic systems, the GH506 Series Rubber Hydraulic Spiral Hose from Eaton Aeroquip delivers unmatched durability and performance. Featuring a robust 4-spiral wire construction and a synthetic rubber cover, this hose is engineered to handle the highest pressures with ease. It is suitable for use with petroleum and water-glycol based fluids, as well as lubricating oils and water, ensuring versatile application options.

With premium abrasion resistance and a conductive design, this hose meets ISO 3862 Type 4SH and EN856 4SH standards, ensuring compliance with industry requirements. The hose's minimum bend radius of 13.39 inches offers flexibility without compromising structural integrity. Additionally, the system-engineered design extends hose assembly life, making it a reliable choice for harsh operating conditions.

SKU: GH506-16

Supplier Part Number (MPN): GH506-16

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015J11299	Application Hydraulic systems with petroleum and water-glycol based fluids, for lubricating oils and water	Certifications ISO 3862 Type 4SH\|EN856 4SH	Color Black	Compliances EN45545\|MSHA Approved\|BWB\|DNV\|ABS Certified\|BV\|LR\|RINA\|MED	Conductivity 30	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 2000000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 13.39	Minimum Bend Radius 13.39	Minimum Working Temperature -40	Product Width 1	Qualified Hose Fittings 1W, 6S	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH506-16	Tube Material Synthetic Rubber	Product Weight 4.71 lbs

Product Questions & Answers (3)

Question by: Neil B on Nov 25, 2025, 1:16 PM

Does this hose hold up running water-glycol fluid, or is it strictly for petroleum-based systems?

Answer by: Customer Support on Nov 27, 2025, 6:12 AM

Water-glycol based fluids are fully supported alongside petroleum-based fluids, lubricating oils, and plain water. The synthetic rubber tube and cover are built to handle that range without issue, so you're not limited to just one fluid type.

Question by: Brett T on Mar 29, 2026, 1:51 PM

What kind of fittings work best with this hose, ya know, the ones that won't give me a headache down the road?

Answer by: Customer Support on Mar 31, 2026, 6:07 AM

For best results and a reliable connection, use 1W or 6S qualified hose fittings with this Aeroquip hose.

Question by: Harold O on Feb 13, 2026, 10:45 AM

got a -16 line on a skid steer that sees a lotta rubbing, is this hose built for that kind of abuse?

Answer by: Customer Support on Feb 15, 2026, 6:43 AM

For rough service, the GH506-16 is set up with a synthetic rubber cover and is called out as having premium abrasion resistance, plus a 4-spiral wire construction for maximum durability in harsh operating conditions.
