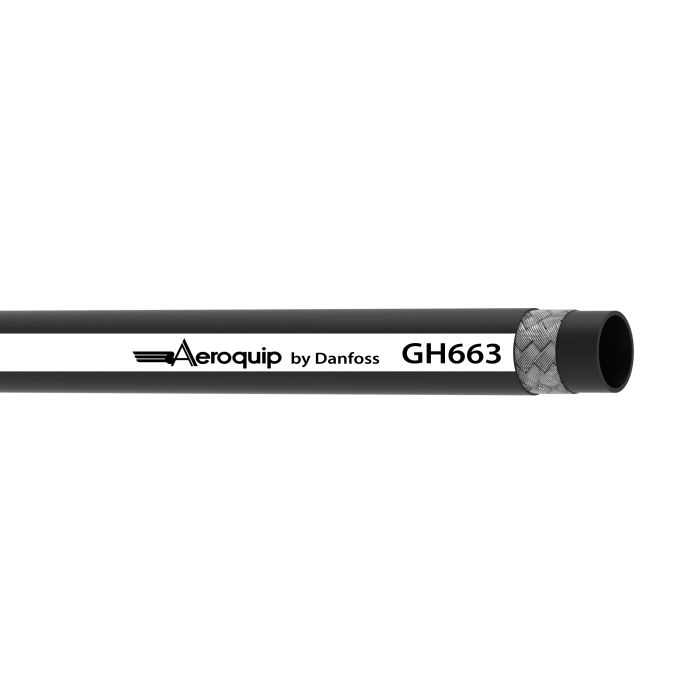

AEROQUIP MATCHMATE HOSE

Description & Features

Designed for hydraulic systems handling petroleum-based fluids, water-glycol base fluids, lubricating oils, and water, this dash -24 hose is built for demanding industrial service. The Aeroquip MatchMate Hose features a nitrile tube, a single-ply wire braid reinforcement, and a PVC/nitrile blend cover rated for a minimum operating temperature of -46°C, with a minimum bend radius of 9.84 inches.

Certified to SAE 100R1AT, SAE 100R17, EN853 1SN, EN853 1ST, and EN857 1SC, and carrying Eaton Aeroquip's conductive construction, it meets USCG, MSHA, DNV, and ABS compliance requirements, making it suitable for marine, mining, and other regulated environments. The system-engineered MatchMate design is intended to extend hose assembly service life and maintain performance through 400,000 impulse cycles.

SKU: GH663-24

Supplier Part Number (MPN): GH663-24

Alternate Part Numbers: C1FF97

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1FF97, Alternate Part Number MINO-00015X00346	Application Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.	Certifications SAE 100R1AT\|EN853 1ST\|EN853 1SN\|ABS\|SAE 100R17\|EN857 1SC	Color Black	Compliances USCG\|MSHA Approved\|DNV	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC/nitrile blend	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 9.84	Minimum Bend Radius 9.84	Minimum Working Temperature -46	Product Width 1.50	Qualified Hose Fittings TTC	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH663-24	Tube Material Nitrile	Product Weight 1.37 lbs

Product Questions & Answers (3)

Question by: Wayne G on Oct 10, 2025, 12:07 PM

got a piece of equipment that runs water-glycol, is this hose ok for that kind of fluid?

Answer by: Customer Support on Oct 12, 2025, 7:10 AM

For hydraulic systems using petroleum and water-glycol base fluids, this GH663 series hose is a fit, and it is also listed for lubricating oils and water.

Question by: Sherry H on Sep 6, 2025, 9:56 PM

what fluids is this hose rated for? got a system running water-glycol and want to make sure before I order

Answer by: Customer Support on Sep 8, 2025, 12:20 PM

Water-glycol base fluids are a confirmed fit for this hose, along with petroleum-based hydraulic fluids and lubricating oils. The nitrile tube material handles both fluid types well, so you should be good to go for that application.

Question by: Larry M on Mar 6, 2026, 2:47 PM

got a tight spot to route this hose, how sharp can i bend the GH663-24 without kinkin it?

Answer by: Customer Support on Mar 8, 2026, 8:05 AM

For bend limits, the minimum bend radius on the GH663-24 is 9.84. Staying at or above that radius helps keep the hose from kinking and protects the reinforcement.
