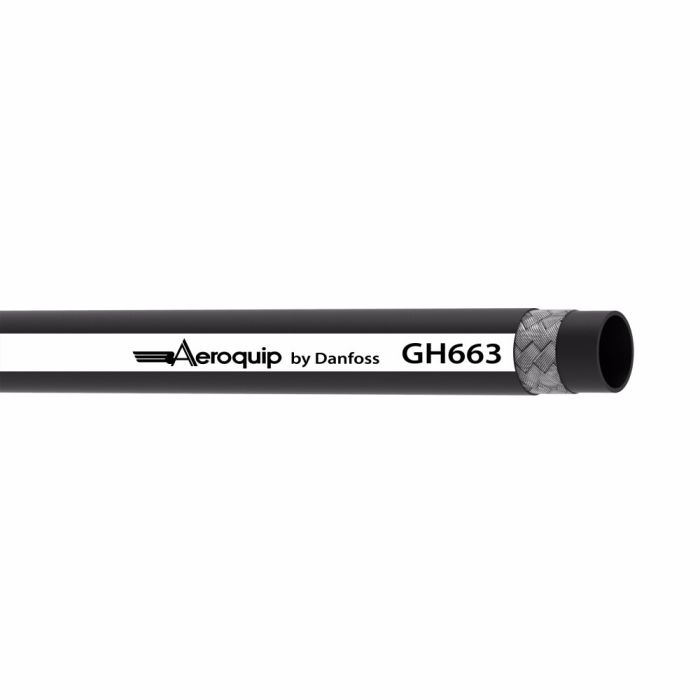

AEROQUIP MATCHMATE HOSE

Ask A Question

Description & Features

Designed for hydraulic systems handling petroleum-based fluids, water-glycol fluids, lubricating oils, and water, this -32 dash size Aeroquip MatchMate Hose features a nitrile tube, single-wire-braid reinforcement, and a PVC/nitrile blend cover. Construction is rated to an impulse cycle life of 400,000 cycles with a minimum bend radius of 12.4 inches, and the hose remains serviceable down to -46°C.

The conductive design meets a broad range of certifications including SAE 100R17, SAE 100R1AT, EN853 1SN, EN853 1ST, and EN857 1SC, with additional compliance under USCG, DNV, and MSHA approvals, making it well-suited for marine, mining, and heavy industrial environments. Qualified fittings for this hose are TTC style. The lay line is applied via transfer tape, and the system-engineered approach to hose and fitting compatibility is intended to extend overall assembly service life under demanding pressure conditions.

SKU: GH663-32

Supplier Part Number (MPN): GH663-32

Alternate Part Numbers: C1FF98

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Standard
Conductivity
Conductive
Cover Material
Nitrile
Dash Size
32
For Use With
TTC and Global Skive Fittings
Hose Color
Black
Hose Type
Conductive, Premium
Impulse Cycle
300000
Lay Line Style
Ink Transfer
Package Form
Bulk
Reinforcement
1-Wire Braided Brass-Plated Steel Wire
Resistance Properties
Abrasion
Series
GH663 Series
Tube Material
Nitrile

Similar Products

Model Number Nominal Size Dash Size Length Price Action
Single Wire Braid SAE 100R1AT Type S Hose, 0.75 Inch ID, Up to 2000.00 PSI

GH663-12R250 Single Wire SAE 100R1AT Hose

3/4 in

12

Single Wire Braid SAE 100R1AT Type S Hose, 1.00 Inch ID, Up to 1500.00 PSI

GH663-16R150 Single Wire SAE 100R1AT Hose

1 in

16

Single Wire Braid SAE 100R1AT Type S Hose, 0.25 Inch ID, Up to 3700.00 PSI

GH663-4R500 Single Wire SAE 100R1AT Hose

1/4 in

04

Single Wire Braid SAE 100R1AT Type S Hose, 0.38 Inch ID, Up to 3400.00 PSI

GH663-6R500 Single Wire SAE 100R1AT Hose

3/8 in

06

Single Wire Braid SAE 100R1AT Type S Hose, 0.50 Inch ID, Up to 2900.00 PSI

GH663-8R500 Single Wire SAE 100R1AT Hose

1/2 in

08

Single Wire Braid SAE 100R1AT Type S Hose, 1.25 Inch ID, Up to 950.00 PSI

GH663-20 Single Wire SAE 100R1AT Hose

20

AEROQUIP 1/4 3250 PSI MAX

GH663-4R250

1/4 in

04

Aeroquip CUT Hose Length 100FT

GH663-6-12000

3/8 in

06

DANFOSS / EATON AEROQUIP MATCHMATE GH663-6R250 3/8

GH663-6R250

3/8 in

06

DANFOSS / EATON AEROQUIP GH663-R250 AQP 1/2 2500 P

GH663-8R250

1/2 in

08

Aeroquip Hose CUT Length 600IN

GH663-20-06000

20

AEROQUIP MATCHMATE HOSE

GH663-24

24

Product Questions & Answers (3)

Question by: Brett B on Apr 24, 2025, 3:18 PM
got a tight spot to snake this through. how sharp can i bend the GH663-32 before i’m asking for trouble
Answer by: Customer Support on Apr 25, 2025, 8:28 PM
Minimum bend radius on the -32 GH663-32 is 12.4 inches. Keeping bends at or above that radius helps avoid kinking and protects the reinforcement.
Question by: Dustin R on Sep 17, 2025, 8:33 PM
Will this hose work with just any kinda hydraulic fluid or is it picky?
Answer by: Customer Support on Sep 19, 2025, 6:47 AM
This hose is designed specifically for hydraulic systems using petroleum-based fluids, water-glycol fluids, lubricating oils, and water.
Question by: Troy J on Feb 6, 2026, 10:13 AM
does this hose hold up in marine or mining applications, or is it more of a standard shop hose?
Answer by: Customer Support on Feb 7, 2026, 4:04 PM
Rated and approved for both environments. It carries USCG compliance for marine use and MSHA approval for mining, so it's built to handle the kind of rough conditions those settings throw at equipment. The conductive construction and multi-standard certifications including SAE 100R1AT, EN853 1SN, and EN857 1SC back that up across a broad range of demanding hydraulic applications.
