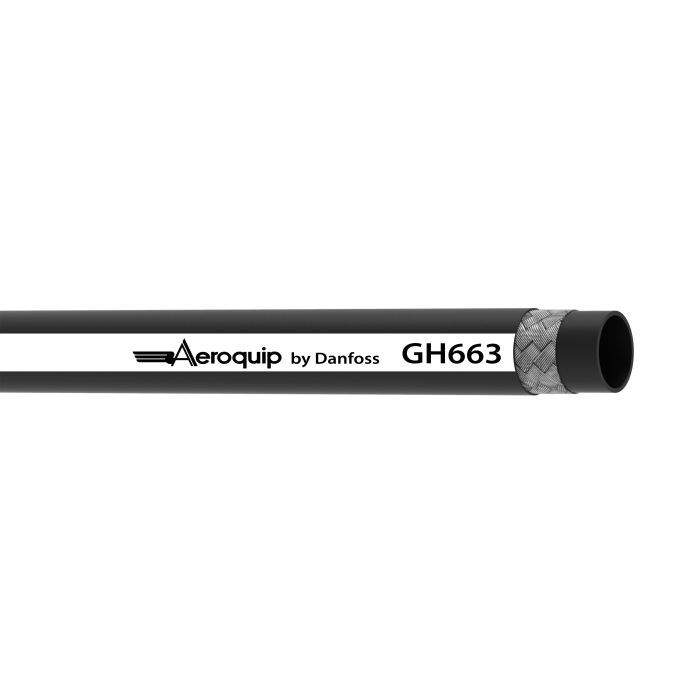

AEROQUIP 1/4 3250 PSI MAX

Description & Features

This hydraulic braided hose delivers maximum durability under harsh conditions. Engineered for a variety of hydraulic systems it meets certifications including ISO 1436-1 Type 1SN EN853 1SN SAE 100R1AT Type S and DIN 20 022 Type 1SN.

Constructed with a PVC/nitrile blend cover and a nitrile tube it withstands a maximum pressure of 3250 PSI and offers a minimum bend radius of 1.97 inches. The black hose features a 1-ply braid reinforcement making it robust enough to handle the highest pressures while extending the hose assembly life.

Designed for use with petroleum and water-glycol base fluids as well as lubricating oils and water this hose offers standard abrasion resistance and conductivity. It is USCG DNV and MSHA approved ensuring compliance with industry standards.

The hose is part of the GH663 series by Danfoss Power Solutions known for their reliability in demanding applications. Notably it boasts an impulse cycle life of 400000 cycles contributing to its long-term performance. The cover material and lay line style ensure a secure and durable fit while the absence of an adjustable end simplifies installation.

ECCN: EAR99

Supplier Part Number: GH663-4R250

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1CX52, Alternate Part Number MINO-00015X00336	Application Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.	Certifications ISO 1436-1 Type 1SN\|EN853 1SN\|SAE 100R1AT Type S\|DIN 20 022 Type 1SN	Color Black	Compliances USCG\|DNV\|MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC/nitrile blend	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 1.97	Minimum Bend Radius 1.97	Minimum Working Temperature -46	Product Width 0.25	Qualified Hose Fittings 1A	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH663-4R250	Tube Material Nitrile	Product Weight 0.27 lbs

Product Questions & Answers (3)

Question by: Hubert J on Feb 14, 2026, 3:14 PM

got a -4 hose on a tight run, how sharp can i bend this one without kinking it?

Answer by: Customer Support on Feb 15, 2026, 3:55 PM

For tight routing, the minimum bend radius on this hose is 1.97 inches. Keeping your bend at or above that radius helps it hold its shape and avoid damage in service.

Question by: Glen F on Mar 12, 2026, 5:20 PM

hose says it works with water-glycol fluids, we run that in a couple of our hydraulic units. just want to make sure this ain't gonna break down on us after a few months of use

Answer by: Customer Support on Mar 14, 2026, 9:41 AM

Water-glycol base fluids are one of the listed compatible fluid types for this hose, so you're covered there. The nitrile tube and PVC/nitrile blend cover are both suited for that kind of service. On top of that, the impulse cycle life is rated at 400,000 cycles, which speaks to how well it holds up over time in working systems. Not a hose that's going to give out quick on you.

Question by: Freddie G on Mar 29, 2026, 7:56 AM

Reckon this hose will hold up alright for running hydraulic fluid on my tractor? Gets pretty hot out here in the summer.

Answer by: Customer Support on Mar 31, 2026, 7:22 AM

Application-wise, it's designed for hydraulic systems that use petroleum and water-glycol base fluids, lubricating oils, and water, so it should be compatible with hydraulic fluid. As for the heat, this hose has a nitrile tube and PVC/nitrile blend cover to withstand tough conditions, but it's always best to check the temperature rating of your specific fluid to ensure it aligns with the hose's capabilities.
