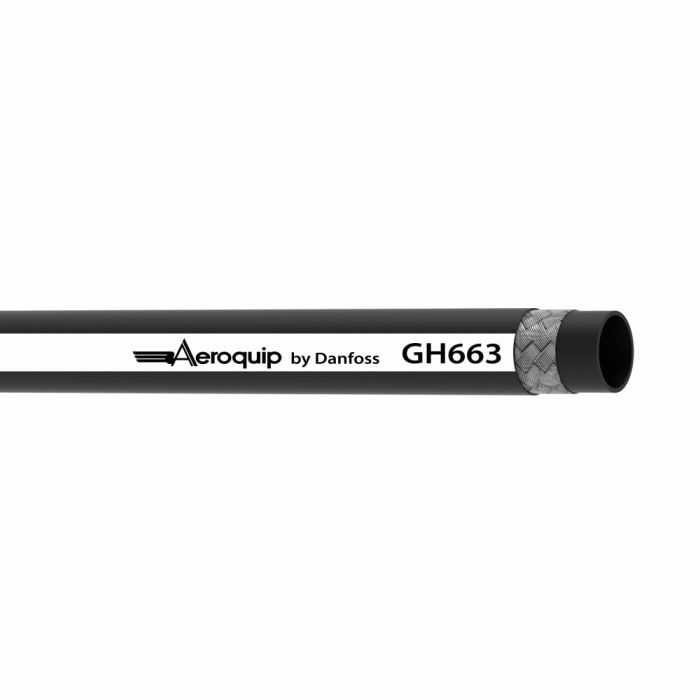

DANFOSS / EATON AEROQUIP GH663-R250 AQP 1/2 2500 P

Description & Features

The DANFOSS / Eaton Aeroquip GH663-R250 AQP 1/2 2500 P hydraulic braided hose is an essential component in hydraulic systems utilizing petroleum and water-glycol base fluids. Engineered with a PVC/nitrile blend cover and nitrile tubing material this hose ensures maximum durability under harsh conditions.

Featuring a single ply braid construction it is designed to withstand the highest pressures while maintaining flexibility with a minimum bend radius of 3.54 inches. This hose meets SAE 100R1AT Type S DIN 20 022 Type 1SN ISO 1436-1 Type 1SN and EN853 1SN certifications ensuring reliable performance and compliance in demanding applications.

With an impulse cycle life of 400 000 cycles this component is built for longevity. It is DNV MSHA Approved and USCG compliant offering a robust solution for hydraulic systems. The black-colored hose is also conductive and abrasion-resistant making it suitable for diverse industrial environments.

MPN: GH663-8R250

Supplier Part Number: GH663-8R250

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1CX56	Application Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.	Certifications SAE 100R1AT Type S\|DIN 20 022 Type 1SN\|ISO 1436-1 Type 1SN\|EN853 1SN	Color Black	Compliances DNV\|MSHA Approved\|USCG	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC/nitrile blend	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 3.54	Minimum Bend Radius 3.54	Minimum Working Temperature -46	Product Width 0.50	Qualified Hose Fittings 1A	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH663-8R250	Tube Material Nitrile	Product Weight 0.34 lbs

Product Questions & Answers (3)

Question by: Sheila H on Apr 30, 2025, 8:36 PM

hose been running petroleum-based fluid through a beat up old line and need something rated for it, this the right one?

Answer by: Customer Support on May 2, 2025, 6:22 AM

Petroleum-based hydraulic fluid is exactly what the GH663 series is built around. The nitrile tube handles petroleum and water-glycol base fluids, along with lubricating oils and water. At a 2500 PSI working pressure with a -8 dash size giving you a half-inch inner diameter, it fits the profile of a standard mid-pressure hydraulic circuit pretty well. The 400,000 impulse cycle rating also means it holds up over time rather than wearing out fast under repeated pressure swings.

Question by: Daryl C on Nov 6, 2025, 9:57 PM

What kind of hydraulic fluids can I run through this hose without issues?

Answer by: Customer Support on Nov 8, 2025, 8:28 AM

This hose is designed for hydraulic systems using petroleum and water-glycol base fluids, as well as lubricating oils and water.

Question by: Floyd R on May 26, 2025, 8:28 AM

got a tight spot to route it through. what’s the smallest bend this hose will handle without kinking up?

Answer by: Customer Support on May 28, 2025, 6:10 AM

For routing constraints, the minimum bend radius is 3.54 inches, so you want to keep your bend at or above that to maintain flow and avoid stressing the hose.
