WDanfoss / Eaton AQP Hose R2 MM

Description & Features

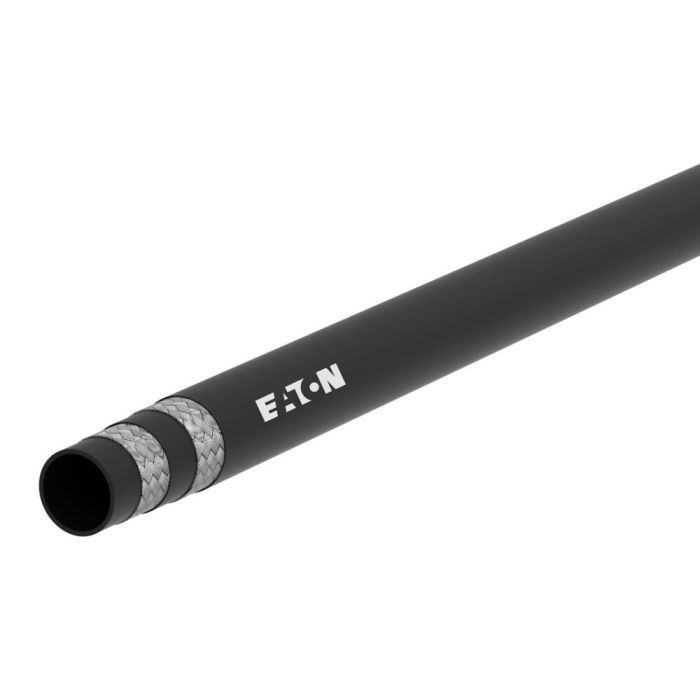

Designed for high-pressure hydraulic systems, the Aeroquip GH793 Series hose is built with a synthetic rubber inner tube and a two-ply wire braid reinforcement beneath a synthetic rubber outer cover. This construction supports reliable performance with petroleum-based and water glycol hydraulic fluids across a wide temperature range, down to -40°F/°C at the lower end.

The WDanfoss / Eaton AQP Hose R2 MM carries a -10 dash size with a 0.63-inch product width and a minimum bend radius of 7.87 inches. The lay line is applied via transfer tape, and the hose is non-conductive. Its robust two-ply braid design is intended to withstand demanding pressure conditions while extending overall assembly service life.

SKU: GH793-10R250US

Specifications

Application High pressure hydraulic system with petroleum and water glycol base fluids	Color Black	Conductivity 13552	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 7.87	Minimum Bend Radius 7.87	Minimum Working Temperature -40	Product Width 0.63	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH793-10R250US	Tube Material Synthetic Rubber	Product Weight 0.53 lbs

Product Questions & Answers (1)

Question by: Lynn W on Mar 13, 2026, 3:33 PM

Can this hose handle the pressure in my hydraulic system on my farm equipment?

Answer by: Customer Support on Mar 15, 2026, 7:20 AM

This Aeroquip GH793 series hose is built to withstand demanding pressure conditions, thanks to its robust two-ply braid design. It should hold up well in your farm equipment's hydraulic system.
