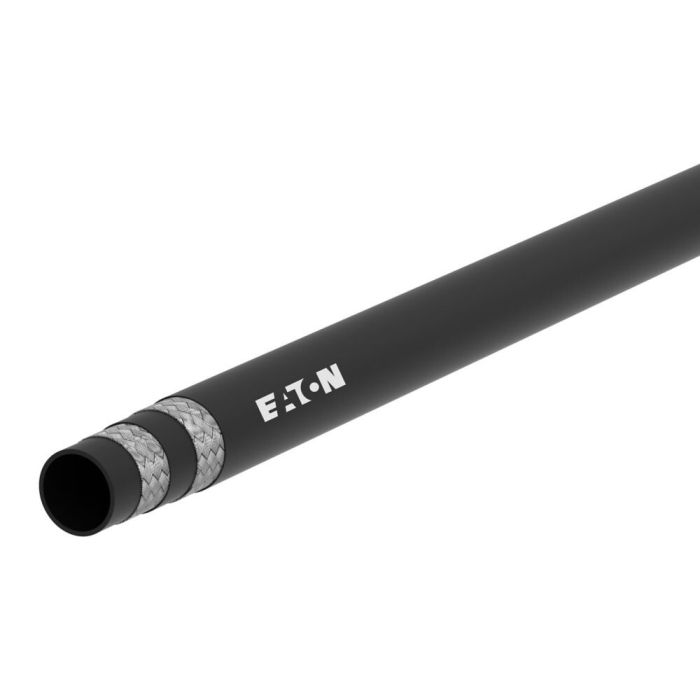

AEROQUIP CUT LENGTH HOSE GH793-12R500 AQ

Designed for hydraulic systems handling petroleum-based and water-glycol fluids, as well as lubricating oils and water, this -12 dash size rubber hose delivers reliable performance across a broad range of industrial fluid power applications. The synthetic rubber tube and cover are reinforced with a two-ply wire braid, providing the structural integrity needed to handle high-pressure demands while maintaining a minimum bend radius of 9.5 inches.

The Aeroquip Cut Length Hose GH793-12R500 Aq meets SAE 100R2AT Type S, EN 853 2SN, and ISO 1436-1 Type 2SN certifications, and carries both DNV and MSHA approvals. The conductive construction supports static dissipation requirements common in industrial environments. Compatible fitting options include crimp, 1A, skive, and socket configurations. Rated for use down to -40°F minimum working temperature, this hose is suited for demanding service conditions where consistent assembly life is a priority.

SKU: GH793-12-18000

Supplier Part Number (MPN): GH793-12-18000
