Aeroquip Gh793-12R250 2-Wire

Description & Features

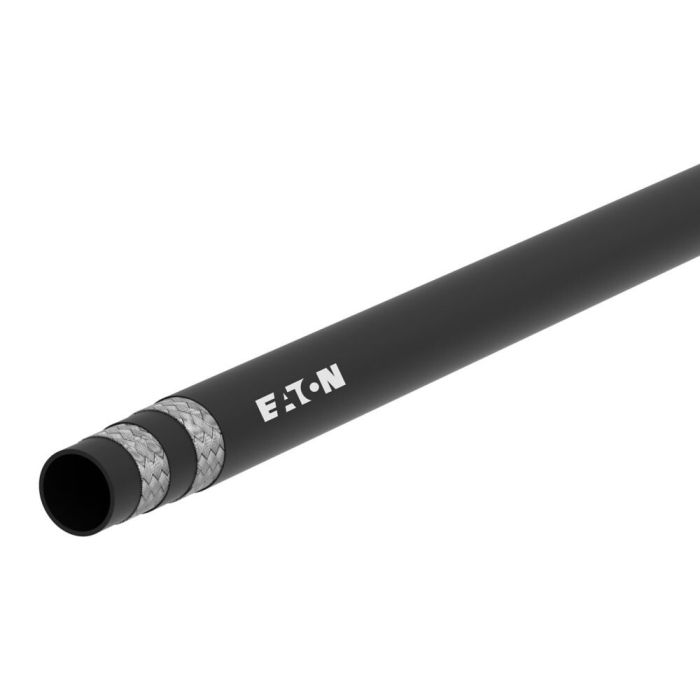

This Aeroquip Gh793-12R250 2-Wire hose is designed for high-pressure hydraulic systems using petroleum and water glycol base fluids. The hose features a synthetic rubber tube and cover, along with a 2-ply wire braid reinforcement for robust construction.

Engineered for durability, this non-conductive hose withstands harsh operating conditions and helps extend hydraulic assembly life. It has a -12 dash size and a minimum bend radius of 9.45 inches, with a minimum working temperature of -40 degrees.

SKU: GH793-12R250US

Supplier Part Number (MPN): GH793-12R250US

Specifications

Application High pressure hydraulic system with petroleum and water glycol base fluids	Color Black	Conductivity 13552	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 9.45	Minimum Bend Radius 9.45	Minimum Working Temperature -40	Product Width 0.75	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH793-12R250US	Tube Material Synthetic Rubber	Product Weight 0.64 lbs

Product Questions & Answers (1)

Question by: Steve H on May 11, 2025, 7:17 PM

Reckon this'll hold up if I'm runnin' somethin' hot through it, like hydraulic fluid gettin' up there in temp?

Answer by: Customer Support on May 13, 2025, 6:40 AM

This hose is rated for high-pressure hydraulic systems using petroleum and water glycol base fluids, and it's designed to withstand harsh operating conditions. The minimum working temperature is -40 degrees.
