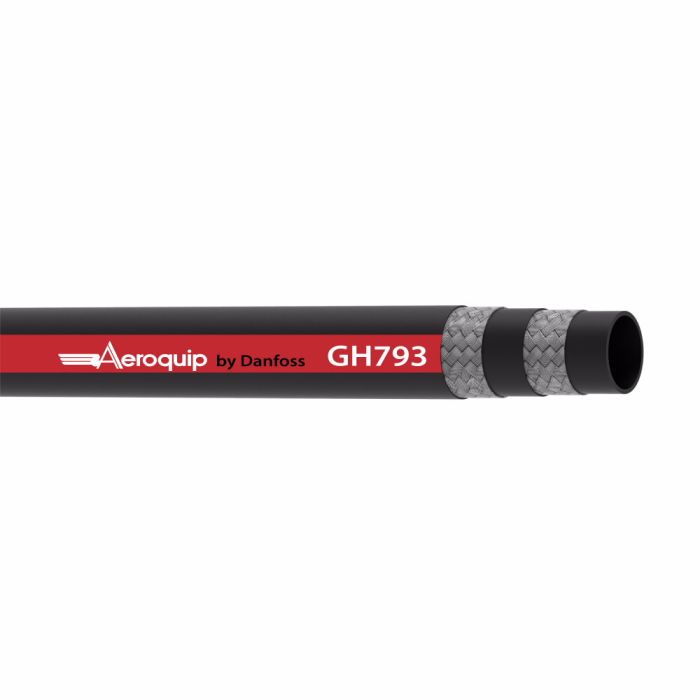

Aeroquip GH793-20 MATCHMATE 2-Wire 1-1/4(ID) 2500 PSI Hose

Description & Features

Designed for hydraulic systems handling petroleum-based fluids, water-glycol fluids, lubricating oils, and water, this 1-1/4" ID, 2500 PSI rated hose delivers reliable performance across demanding industrial environments. The Aeroquip GH793-20 features a nitrile tube, a two-ply wire braid reinforcement, and a PVC/nitrile blend cover rated for premium abrasion resistance, making it well suited to applications where hose surfaces are subject to regular contact or friction.

Rated for a minimum working temperature of -40°F and a minimum bend radius of 16.5 inches, this hose meets EN853 2SN, ISO 1436-1 Type 2SN, and SAE 100R2AT Type S standards. It carries DNV and Msha approvals and is conductive by construction. Compatible qualified fittings include 1A and 1SA series. The lay line is applied via transfer tape for clear identification.

SKU: GH793-20

Supplier Part Number (MPN): GH793-20

Alternate Part Numbers: GH793-20-100, MI-00290550, MINO-00015F38177

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Standard
Conditional Temp Range
-40 to 257 deg F Intermittently
Cover Material
Nitrile
Dash Size
20
For Use With
TTC/Z Series Hose Fittings
Hose Color
Black
Hose Type
Conductive
Impulse Cycle
200000
Inside Diameter
1-1/4 in
Lay Line Style
Ink Transfer
Length
1 ft
Package Form
Bulk
Reinforcement
2-Wire Braided Brass-Plated Steel Wire
Resistance
Abrasion
Resistance Properties
Abrasion
Series
GH793 Series
Tube Material
Nitrile

Similar Products

Model Number Nominal Size Dash Size Length Price Action
Double Wire Braid SAE 100R2AT Hose, 1.00 Inch ID, Up to 2500.00 PSI

GH793-16R150 Double Wire Braid 100R2AT Hose

1 in

16

Double Wire Braid SAE 100R2AT Hose, 0.25 Inch ID, Up to 5750.00 PSI

GH793-4R500 Double Wire Braid 100R2AT Hose

1/4 in

04

Double Wire Braid SAE 100R2AT Hose, 0.75 Inch ID, Up to 3125.00 PSI

GH793-12R250 Double Wire Braid 100R2AT Hose

3/4 in

12

Double Wire Braid SAE 100R2AT Hose, 0.50 Inch ID, Up to 4250.00 PSI

GH793-8R500 Double Wire Braid 100R2AT Hose

1/2 in

08

Double Wire Braid SAE 100R2AT Hose, 0.62 Inch ID, Up to 3625.00 PSI

GH793-10R250 Double Wire Braid 100R2AT Hose

10

Double Wire Braid SAE 100R2AT Hose, 0.38 Inch ID, Up to 5000.00 PSI

GH793-6R500 Double Wire Braid 100R2AT Hose

3/8 in

06

Danfoss / Eaton Aeroquip GH793-4R500 Triple Crown

GH793-4R250

1/4 in

04

Danfoss / Eaton Aeroquip GH793-4R250

GH793-4R250US

1/4 in

04

Danfoss / Eaton Aeroquip GH793-4R500

GH793-4R500US

1/4 in

04

DANFOSS / EATON AEROQUIP GH793-6R250 AQP 3/8 I.D.

GH793-6R250

3/8 in

06

Danfoss / Eaton Aeroquip GH793-6R500

GH793-6R500US

3/8 in

06

Aeroquip 50FT CUT Length Hose GH793-8R50

GH793-8-06000

1/2 in

08

DANFOSS / EATON AEROQUIP GH793 MATCHMATE GLOBAL DO

GH793-8R250

1/2 in

08

Danfoss / Eaton Aeroquip GH793-8R250

GH793-8R250US

1/2 in

08

Danfoss / Eaton Aeroquip GH793-8R500

GH793-8R500US

1/2 in

08

WDanfoss / Eaton AQP Hose R2 MM

GH793-10R250US

10

Aeroquip 50FT CUT Length Hose GH793-12R5

GH793-12-06000

3/4 in

12

AEROQUIP CUT LENGTH HOSE GH793-12R500 AQ

GH793-12-18000

3/4 in

12

Aeroquip Gh793-12R250 2-Wire

GH793-12R250US

3/4 in

12

Aeroquip GH793-16R150 MATCHMATE 2-Wire

GH793-16R150US

1 in

16

AEROQUIP GH793-20 CUT 50 FEET GH793-20R5

GH793-20-06000

20

Aeroquip 1.5IN 2000 PSI Hose

GH793-24

24

1 ft

AEROQUIP GH793-24 CUT 50 FEET GH793-24R5

GH793-24-06000

24

Aeroquip 2IN 1600 PSI Hose

GH793-32

32

1 ft

Product Questions & Answers (5)

Question by: Connie G on May 1, 2025, 10:20 AM
hose is rated for water-glycol fluids or just straight petroleum stuff?
Answer by: Customer Support on May 3, 2025, 6:22 AM
Both, actually. The GH793-20 handles petroleum-based hydraulic fluids and water-glycol base fluids, and it also works with lubricating oils and water. The nitrile tube material is what makes it compatible across that range. Pretty solid option if your system runs a water-glycol mix for fire resistance or freeze protection.
Question by: Melvin H on Dec 3, 2025, 1:17 PM
got a -20 hose setup now. is this GH793-20 actually 1-1/4 inch ID and rated 2500 psi?
Answer by: Customer Support on Dec 5, 2025, 7:56 AM
Spec-wise, GH793-20 is a dash -20 hose with a 1.25 inch inside diameter and a 2500 PSI working pressure rating.
Question by: Janet S on Dec 29, 2025, 2:40 PM
hose is rated for water-glycol fluids or just straight petroleum? got a system running both and need something that'll hold up to either
Answer by: Customer Support on Dec 31, 2025, 6:16 AM
Both are covered with this hose. The GH793-20 is built for hydraulic systems running petroleum-based fluids and water-glycol base fluids, so you won't need to pick one or the other. The nitrile tube handles both fluid types without issue.
Question by: Wes P on Nov 21, 2025, 4:58 PM
What kind of stuff is this hose good for, like what fluids can it handle?
Answer by: Customer Support on Nov 23, 2025, 1:02 PM
Application-wise, this Aeroquip hose is made for hydraulic systems using petroleum-based fluids, water-glycol base fluids, lubricating oils, and even just plain water.
Question by: Patty B on Aug 26, 2025, 9:19 AM
trying to swap out a worn hose, is GH793-20 the 1-1/4 inch inside diameter one rated for 2500 psi
Answer by: Customer Support on Aug 27, 2025, 6:15 PM
For fit, GH793-20 is the -20 dash size with a 1.25 inch inside diameter, and it is a 2500 PSI working pressure hose in the GH793 series.
