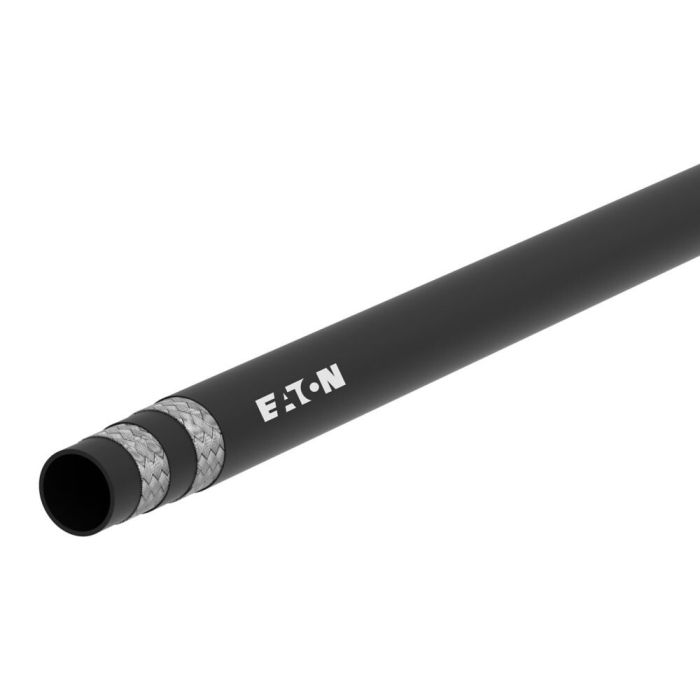

AEROQUIP GH793-24 CUT 50 FEET GH793-24R5

Description & Features

Designed for hydraulic systems utilizing petroleum and water-glycol base fluids, the Aeroquip GH793-24 offers robust performance in demanding environments. This hose features a durable 2-ply braided construction, ensuring maximum durability and the ability to withstand high pressure. With a conductive design, it caters to systems requiring electrical conductivity, while the synthetic rubber cover provides standard abrasion resistance.

The GH793-24 is engineered to extend the life of hose assemblies, making it a reliable choice for industrial applications. It meets stringent certifications, including ISO 1436-1 Type 2SN, EN853 2SN, and SAE 100R2AT Type S, and is compliant with DNV and MSHA standards. The hose is suitable for use with crimp, 1A, skive, and socket data fittings, providing versatility in installation. With a minimum bend radius of 20, it offers flexibility in tight spaces.

SKU: GH793-24-06000

Supplier Part Number (MPN): GH793-24-06000

Alternate Part Numbers: C1GE51

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Standard
Conditional Temp Range
-40 to 257 deg F Intermittently
Conductivity
Conductive
Cover Material
Nitrile
Dash Size
24
For Use With
TTC/Z Series Hose Fittings
Hose Color
Black
Hose Type
Conductive
Impulse Cycle
200000
Inside Diameter
1-1/2 in
Lay Line Style
Ink Transfer
Package Form
Cut Length
Reinforcement
2-Wire Braided Brass-Plated Steel Wire
Resistance Properties
Abrasion
Series
GH793 Series
Tube Material
Nitrile

Similar Products

Model Number Nominal Size Dash Size Length Price Action
Double Wire Braid SAE 100R2AT Hose, 1.00 Inch ID, Up to 2500.00 PSI

GH793-16R150 Double Wire Braid 100R2AT Hose

1 in

16

Double Wire Braid SAE 100R2AT Hose, 0.25 Inch ID, Up to 5750.00 PSI

GH793-4R500 Double Wire Braid 100R2AT Hose

1/4 in

04

Double Wire Braid SAE 100R2AT Hose, 0.75 Inch ID, Up to 3125.00 PSI

GH793-12R250 Double Wire Braid 100R2AT Hose

3/4 in

12

Double Wire Braid SAE 100R2AT Hose, 0.50 Inch ID, Up to 4250.00 PSI

GH793-8R500 Double Wire Braid 100R2AT Hose

1/2 in

08

Double Wire Braid SAE 100R2AT Hose, 0.62 Inch ID, Up to 3625.00 PSI

GH793-10R250 Double Wire Braid 100R2AT Hose

10

Double Wire Braid SAE 100R2AT Hose, 0.38 Inch ID, Up to 5000.00 PSI

GH793-6R500 Double Wire Braid 100R2AT Hose

3/8 in

06

Danfoss / Eaton Aeroquip GH793-4R500 Triple Crown

GH793-4R250

1/4 in

04

Danfoss / Eaton Aeroquip GH793-4R250

GH793-4R250US

1/4 in

04

Danfoss / Eaton Aeroquip GH793-4R500

GH793-4R500US

1/4 in

04

DANFOSS / EATON AEROQUIP GH793-6R250 AQP 3/8 I.D.

GH793-6R250

3/8 in

06

Danfoss / Eaton Aeroquip GH793-6R500

GH793-6R500US

3/8 in

06

Aeroquip 50FT CUT Length Hose GH793-8R50

GH793-8-06000

1/2 in

08

DANFOSS / EATON AEROQUIP GH793 MATCHMATE GLOBAL DO

GH793-8R250

1/2 in

08

Danfoss / Eaton Aeroquip GH793-8R250

GH793-8R250US

1/2 in

08

Danfoss / Eaton Aeroquip GH793-8R500

GH793-8R500US

1/2 in

08

WDanfoss / Eaton AQP Hose R2 MM

GH793-10R250US

10

Aeroquip 50FT CUT Length Hose GH793-12R5

GH793-12-06000

3/4 in

12

AEROQUIP CUT LENGTH HOSE GH793-12R500 AQ

GH793-12-18000

3/4 in

12

Aeroquip Gh793-12R250 2-Wire

GH793-12R250US

3/4 in

12

Aeroquip GH793-16R150 MATCHMATE 2-Wire

GH793-16R150US

1 in

16

Aeroquip GH793-20 MATCHMATE 2-Wire 1-1/4(ID) 2500 PSI Hose

GH793-20

20

1 ft

AEROQUIP GH793-20 CUT 50 FEET GH793-20R5

GH793-20-06000

20

Aeroquip 1.5IN 2000 PSI Hose

GH793-24

24

1 ft

Aeroquip 2IN 1600 PSI Hose

GH793-32

32

1 ft

Product Questions & Answers (1)

Question by: Jerry H on Jul 16, 2025, 6:54 PM
Will this hose work with standard crimp fittings?
Answer by: Customer Support on Jul 18, 2025, 6:00 AM
This GH793-24 hose is qualified for use with crimp, 1A, skive, and socket data fittings, so you should be good to go with standard crimp types.
