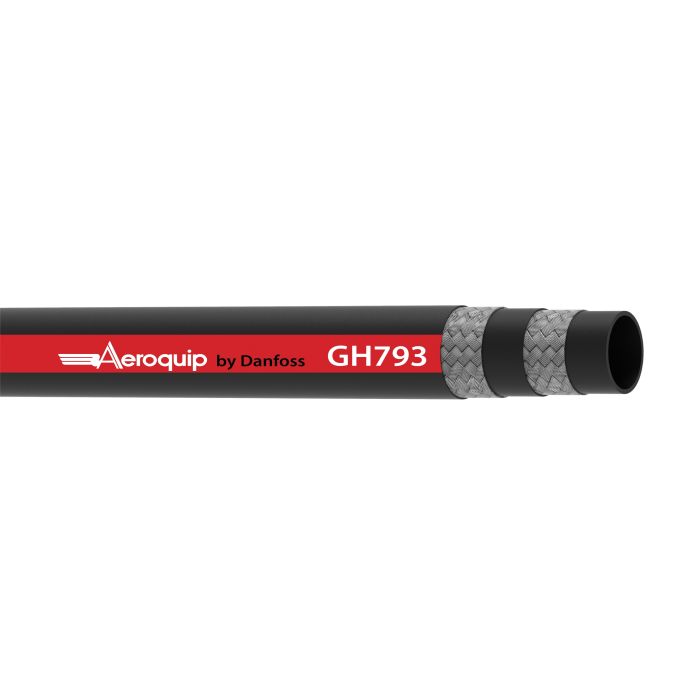

Aeroquip 1.5IN 2000 PSI Hose

Description & Features

Built for premium abrasion resistance and durability, the Eaton Aeroquip 1.5IN 2000 PSI Hose is designed to meet the rigorous demands of hydraulic systems utilizing petroleum and water-glycol base fluids. Engineered with a robust 2-ply braided construction, this hose ensures high performance and longevity even under the highest pressure conditions. The PVC/nitrile blend cover enhances its durability, while the nitrile tube material ensures compatibility with lubricating oils and water.

Compliant with ISO 1436-1 Type 2SN, SAE 100R2AT Type S, and EN853 2SN standards, this black hose is both MSHA Approved and DNV compliant, making it suitable for a wide range of industrial applications. With a minimum bend radius of 20 inches and the ability to operate in temperatures as low as -40°F, it is designed to meet the needs of demanding environments.

SKU: GH793-24

Supplier Part Number (MPN): GH793-24

Alternate Part Numbers: C1CX71, MI-00290553, MINO-00015F38179

Specifications

Brand Aeroquip® by Danfoss	Abrasion Resistance Standard	Conditional Temp Range -40 to 257 deg F Intermittently	Cover Material Nitrile	Dash Size 24	For Use With TTC/Z Series Hose Fittings	Hose Color Black	Hose Type Conductive	Impulse Cycle 200000	Inside Diameter 1-1/2 in	Lay Line Style Ink Transfer	Length 1 ft	Package Form Bulk	Reinforcement 2-Wire Braided Brass-Plated Steel Wire	Resistance Abrasion	Resistance Properties Abrasion	Series GH793 Series	Tube Material Nitrile

Similar Products

Model Number	Nominal Size	Dash Size	Length
GH793-16R150 Double Wire Braid 100R2AT Hose	1 in	16
GH793-4R500 Double Wire Braid 100R2AT Hose	1/4 in	04
GH793-12R250 Double Wire Braid 100R2AT Hose	3/4 in	12
GH793-8R500 Double Wire Braid 100R2AT Hose	1/2 in	08
GH793-10R250 Double Wire Braid 100R2AT Hose		10
GH793-6R500 Double Wire Braid 100R2AT Hose	3/8 in	06
GH793-4R250	1/4 in	04
GH793-4R250US	1/4 in	04
GH793-4R500US	1/4 in	04
GH793-6R250	3/8 in	06
GH793-6R500US	3/8 in	06
GH793-8-06000	1/2 in	08
GH793-8R250	1/2 in	08
GH793-8R250US	1/2 in	08
GH793-8R500US	1/2 in	08
GH793-10R250US		10
GH793-12-06000	3/4 in	12
GH793-12-18000	3/4 in	12
GH793-12R250US	3/4 in	12
GH793-16R150US	1 in	16
GH793-20		20	1 ft
GH793-20-06000		20
GH793-24-06000		24
GH793-32		32	1 ft

Product Questions & Answers (3)

Question by: Kent H on Jul 30, 2025, 3:14 PM

Got a skid steer that runs on water-glycol fluid and the hose I got on there now is just tearing up from rubbing against the frame. This one rated for that kind of fluid, and will the cover hold up better than a standard rubber hose?

Answer by: Customer Support on Aug 1, 2025, 8:33 AM

Water-glycol is one of the listed compatible fluids for this hose, so you're good on that front. The cover is a PVC/nitrile blend, which is rated for premium abrasion resistance, so it should hold up a lot better than a plain rubber hose in a spot where it's taking constant contact from a frame or bracket.

Question by: Harvey W on Jan 2, 2026, 8:04 PM

Reckon this hose will hold up if I'm runnin' hydraulic fluid through it all day long?

Answer by: Customer Support on Jan 3, 2026, 8:21 PM

This Aeroquip hose is designed to handle continuous use in hydraulic systems using petroleum and water-glycol base fluids. It's built with a 2-ply braided construction for durability under high pressure.

Question by: Keith H on Jul 30, 2025, 7:58 AM

got a tight spot to route it through, how picky is this hose on bend radius

Answer by: Customer Support on Jul 31, 2025, 1:36 PM

Minimum bend radius on this one is 20 inches. If you have to bend it tighter than that, you are more likely to shorten hose life, especially under pressure.
