Danfoss / Eaton Aeroquip GH793-4R500 Triple Crown

Description & Features

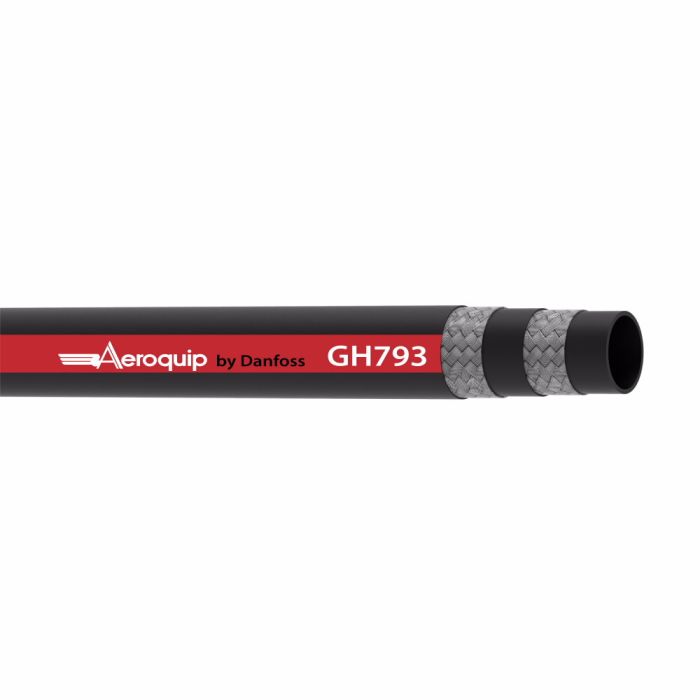

The Eaton Aeroquip GH793-4R500 Triple Crown hose is designed for hydraulic systems using petroleum and water-glycol base fluids, lubricating oils, and water. This -4 dash size hose features a conductive, two-ply braid construction.

Built for durability, the hose has a PVC/nitrile blend cover and nitrile tube material. It is MSHA approved and compliant with EN853 2SN, SAE 100R2AT Type S, and ISO 1436-1 Type 2SN standards. It utilizes qualified 1A and 1SA hose fittings and has a minimum bend radius of 4 inches. The minimum working temperature is -40 degrees.

SKU: GH793-4R250

Supplier Part Number (MPN): GH793-4R250

Alternate Part Numbers: C1CX73

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Standard
Conditional Temp Range
-40 to 257 deg F Intermittently
Conductivity
Conductive
Cover Material
Nitrile
Dash Size
04
For Use With
TTC/Z Series Hose Fittings
Hose Color
Black
Hose Type
Conductive
Impulse Cycle
200000
Inside Diameter
1/4 in
Lay Line Style
Ink Transfer
Nominal Size
1/4 in
Package Form
Reel
Reinforcement
2-Wire Braided Brass-Plated Steel Wire
Resistance Properties
Abrasion
Series
GH793 Series
Tube Material
Nitrile

Similar Products

Model Number Nominal Size Dash Size Length Price Action
Double Wire Braid SAE 100R2AT Hose, 1.00 Inch ID, Up to 2500.00 PSI

GH793-16R150 Double Wire Braid 100R2AT Hose

1 in

16

Double Wire Braid SAE 100R2AT Hose, 0.25 Inch ID, Up to 5750.00 PSI

GH793-4R500 Double Wire Braid 100R2AT Hose

1/4 in

04

Double Wire Braid SAE 100R2AT Hose, 0.75 Inch ID, Up to 3125.00 PSI

GH793-12R250 Double Wire Braid 100R2AT Hose

3/4 in

12

Double Wire Braid SAE 100R2AT Hose, 0.50 Inch ID, Up to 4250.00 PSI

GH793-8R500 Double Wire Braid 100R2AT Hose

1/2 in

08

Double Wire Braid SAE 100R2AT Hose, 0.62 Inch ID, Up to 3625.00 PSI

GH793-10R250 Double Wire Braid 100R2AT Hose

10

Double Wire Braid SAE 100R2AT Hose, 0.38 Inch ID, Up to 5000.00 PSI

GH793-6R500 Double Wire Braid 100R2AT Hose

3/8 in

06

Danfoss / Eaton Aeroquip GH793-4R250

GH793-4R250US

1/4 in

04

Danfoss / Eaton Aeroquip GH793-4R500

GH793-4R500US

1/4 in

04

DANFOSS / EATON AEROQUIP GH793-6R250 AQP 3/8 I.D.

GH793-6R250

3/8 in

06

Danfoss / Eaton Aeroquip GH793-6R500

GH793-6R500US

3/8 in

06

Aeroquip 50FT CUT Length Hose GH793-8R50

GH793-8-06000

1/2 in

08

DANFOSS / EATON AEROQUIP GH793 MATCHMATE GLOBAL DO

GH793-8R250

1/2 in

08

Danfoss / Eaton Aeroquip GH793-8R250

GH793-8R250US

1/2 in

08

Danfoss / Eaton Aeroquip GH793-8R500

GH793-8R500US

1/2 in

08

WDanfoss / Eaton AQP Hose R2 MM

GH793-10R250US

10

Aeroquip 50FT CUT Length Hose GH793-12R5

GH793-12-06000

3/4 in

12

AEROQUIP CUT LENGTH HOSE GH793-12R500 AQ

GH793-12-18000

3/4 in

12

Aeroquip Gh793-12R250 2-Wire

GH793-12R250US

3/4 in

12

Aeroquip GH793-16R150 MATCHMATE 2-Wire

GH793-16R150US

1 in

16

Aeroquip GH793-20 MATCHMATE 2-Wire 1-1/4(ID) 2500 PSI Hose

GH793-20

20

1 ft

AEROQUIP GH793-20 CUT 50 FEET GH793-20R5

GH793-20-06000

20

Aeroquip 1.5IN 2000 PSI Hose

GH793-24

24

1 ft

AEROQUIP GH793-24 CUT 50 FEET GH793-24R5

GH793-24-06000

24

Aeroquip 2IN 1600 PSI Hose

GH793-32

32

1 ft

Product Questions & Answers (2)

Question by: Connie C on Sep 2, 2025, 6:19 AM
Does this hose hold up to water-glycol fluid, or is it strictly for petroleum-based systems?
Answer by: Customer Support on Sep 4, 2025, 8:46 AM
Water-glycol base fluids are fully supported alongside petroleum-based hydraulic fluids. Lubricating oils and water are also listed applications, so it covers a pretty broad range of common hydraulic media without issue.
Question by: Ricky R on Dec 22, 2025, 4:12 PM
Wondering if this Aeroquip hose would work alright with standard hydraulic fluid, or if it needs something special?
Answer by: Customer Support on Dec 24, 2025, 11:30 AM
This hose is designed for hydraulic systems using petroleum and water-glycol base fluids, lubricating oils, and water, so standard hydraulic fluid should be just fine.
