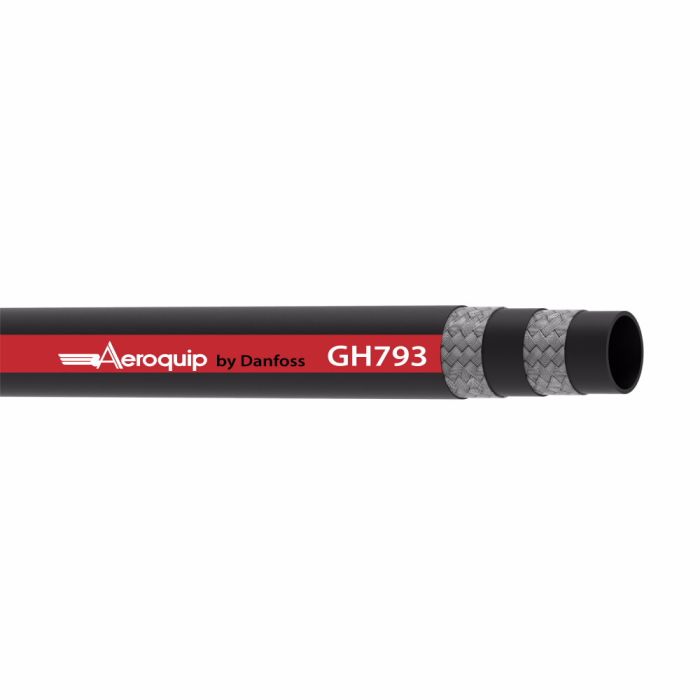

DANFOSS / EATON AEROQUIP GH793-6R250 AQP 3/8 I.D.

Description & Features

Designed for maximum durability in demanding environments, the Eaton Aeroquip GH793-6R250 AQP hydraulic hose provides exceptional performance for hydraulic systems utilizing petroleum and water-glycol base fluids. With a 3/8 inch internal diameter and robust two-ply braided construction, this hose is engineered to withstand high pressure, extending the life of your hydraulic assembly. The black PVC/nitrile blend cover ensures standard abrasion resistance, while the conductive design enhances operational safety.

Certified to meet EN853 2SN, ISO 1436-1 Type 2SN, and SAE 100R2AT Type S standards, this hose complies with DNV and MSHA approvals, ensuring reliability and compliance in industrial settings. The nitrile tube material and qualified hose fittings (1A, 1SA) further enhance its compatibility and performance. With a minimum bend radius of 5 inches and a temperature range down to -40 degrees, this hose is versatile for various demanding applications.

SKU: GH793-6R250

Supplier Part Number (MPN): GH793-6R250

Alternate Part Numbers: C1CX75

Specifications

Brand
Aeroquip® by Danfoss
Abrasion Resistance
Standard
Conditional Temp Range
-40 to 257 deg F Intermittently
Conductivity
Conductive
Cover Material
Nitrile
Dash Size
06
For Use With
TTC/Z Series Hose Fittings
Hose Color
Black
Hose Type
Conductive
Impulse Cycle
200000
Inside Diameter
0.38 in
Lay Line Style
Ink Transfer
Nominal Size
3/8 in
Package Form
Reel
Reinforcement
2-Wire Braided Brass-Plated Steel Wire
Resistance Properties
Abrasion
Series
GH793 Series
Tube Material
Nitrile

Similar Products

Model Number Nominal Size Dash Size Length Price Action
Double Wire Braid SAE 100R2AT Hose, 1.00 Inch ID, Up to 2500.00 PSI

GH793-16R150 Double Wire Braid 100R2AT Hose

1 in

16

Double Wire Braid SAE 100R2AT Hose, 0.25 Inch ID, Up to 5750.00 PSI

GH793-4R500 Double Wire Braid 100R2AT Hose

1/4 in

04

Double Wire Braid SAE 100R2AT Hose, 0.75 Inch ID, Up to 3125.00 PSI

GH793-12R250 Double Wire Braid 100R2AT Hose

3/4 in

12

Double Wire Braid SAE 100R2AT Hose, 0.50 Inch ID, Up to 4250.00 PSI

GH793-8R500 Double Wire Braid 100R2AT Hose

1/2 in

08

Double Wire Braid SAE 100R2AT Hose, 0.62 Inch ID, Up to 3625.00 PSI

GH793-10R250 Double Wire Braid 100R2AT Hose

10

Double Wire Braid SAE 100R2AT Hose, 0.38 Inch ID, Up to 5000.00 PSI

GH793-6R500 Double Wire Braid 100R2AT Hose

3/8 in

06

Danfoss / Eaton Aeroquip GH793-4R500 Triple Crown

GH793-4R250

1/4 in

04

Danfoss / Eaton Aeroquip GH793-4R250

GH793-4R250US

1/4 in

04

Danfoss / Eaton Aeroquip GH793-4R500

GH793-4R500US

1/4 in

04

Danfoss / Eaton Aeroquip GH793-6R500

GH793-6R500US

3/8 in

06

Aeroquip 50FT CUT Length Hose GH793-8R50

GH793-8-06000

1/2 in

08

DANFOSS / EATON AEROQUIP GH793 MATCHMATE GLOBAL DO

GH793-8R250

1/2 in

08

Danfoss / Eaton Aeroquip GH793-8R250

GH793-8R250US

1/2 in

08

Danfoss / Eaton Aeroquip GH793-8R500

GH793-8R500US

1/2 in

08

WDanfoss / Eaton AQP Hose R2 MM

GH793-10R250US

10

Aeroquip 50FT CUT Length Hose GH793-12R5

GH793-12-06000

3/4 in

12

AEROQUIP CUT LENGTH HOSE GH793-12R500 AQ

GH793-12-18000

3/4 in

12

Aeroquip Gh793-12R250 2-Wire

GH793-12R250US

3/4 in

12

Aeroquip GH793-16R150 MATCHMATE 2-Wire

GH793-16R150US

1 in

16

Aeroquip GH793-20 MATCHMATE 2-Wire 1-1/4(ID) 2500 PSI Hose

GH793-20

20

1 ft

AEROQUIP GH793-20 CUT 50 FEET GH793-20R5

GH793-20-06000

20

Aeroquip 1.5IN 2000 PSI Hose

GH793-24

24

1 ft

AEROQUIP GH793-24 CUT 50 FEET GH793-24R5

GH793-24-06000

24

Aeroquip 2IN 1600 PSI Hose

GH793-32

32

1 ft

Product Questions & Answers (2)

Question by: Sheila E on Nov 18, 2025, 5:12 PM
Would this hose hold up okay with hydraulic fluid that's got a water-glycol base?
Answer by: Customer Support on Nov 20, 2025, 7:32 AM
This Eaton Aeroquip hose is designed specifically for hydraulic systems using petroleum and water-glycol base fluids. It's also good for lubricating oils and water.
Question by: Jean S on Feb 14, 2026, 9:02 AM
got a -6 hose on a skid steer, is this the right size or am i off
Answer by: Customer Support on Feb 15, 2026, 5:09 PM
For sizing, GH793-6R250 is a dash -6 hydraulic hose with a 3/8 inch inside diameter. If your machine calls for a -6 line, this matches that I.D.
