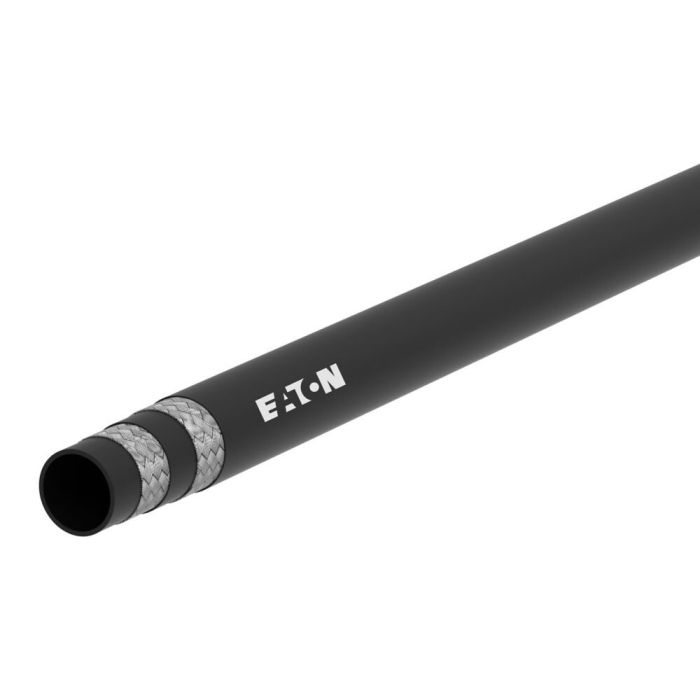

Aeroquip 50FT CUT Length Hose GH793-8R50

Ask A Question

Description & Features

Designed for hydraulic systems handling petroleum-based fluids, water-glycol fluids, and lubricating oils, this -8 dash size hose features a synthetic rubber inner tube and a 2-ply wire-braided reinforcement beneath a synthetic rubber outer cover. The construction meets SAE 100R2AT Type S, ISO 1436-1 Type 2SN, and EN853 2SN standards, with DNV and MSHA compliance for demanding industrial environments.

The Aeroquip 50FT Cut Length Hose GH793-8R50 carries a conductive rating and a minimum bend radius of 7 inches, supporting flexible routing in tight installations. Rated for a minimum working temperature of -40°F, it is suited for applications where low-temperature performance is a consideration. Compatible fittings include crimp, 1A skive, and socket configurations.

SKU: GH793-8-06000

Supplier Part Number (MPN): GH793-8-06000

Specifications

Abrasion Resistance
29
Application
Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.
Certifications
ISO 1436-1 Type 2SN|EN853 2SN|SAE 100R2AT Type S
Color
Black
Compliances
DNV|MSHA Approved
Conductivity
30
Construction
2-ply braid
Cover Material
Synthetic Rubber
Dash Size
-8
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Features
Maximum durability under harsh operating conditions|Robust construction able to withstand highest pressures|System engineered to extend hose assembly life
ICC
Hoses and Flexible Tubes
Language
English
Lay Line Style
Ink Transfer
Minimum Bend Radius
7
Minimum Bend Radius
7
Minimum Working Temperature
-40
Product Width
0.87
Qualified Hose Fittings
Crimp, 1A, Skive, Socket Data
Reinforcement Material
Wire
Supplier Part Number
GH793-8-06000
Tube Material
Synthetic Rubber
Product Weight
23.00 lbs

Related Documents

Product Questions & Answers (1)

Question by: Hugh P on Feb 28, 2026, 7:16 AM
What kind of fittings work with this hose...crimp, socket, or what?
Answer by: Customer Support on Mar 1, 2026, 11:11 AM
You can use crimp, 1A skive, and socket fittings with this hose.
