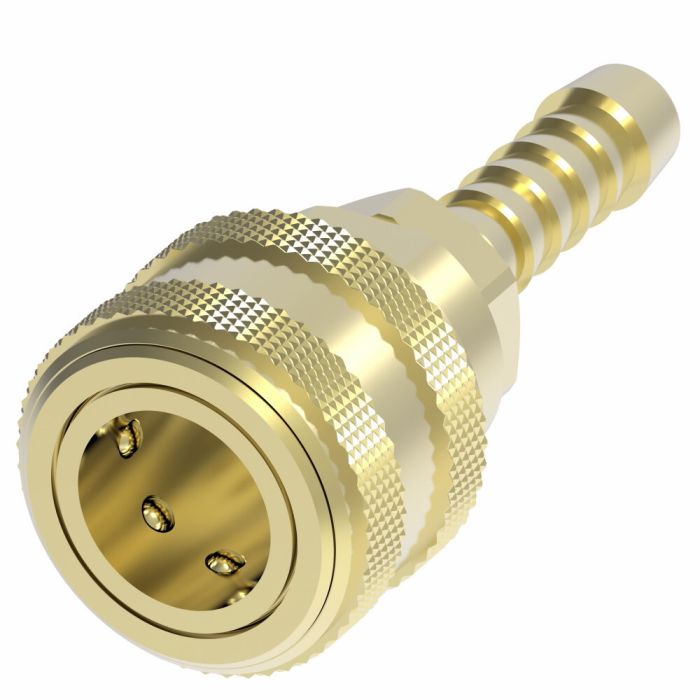

DANFOSS / EATON/HANSEN CPLNG

Ask A Question

Description & Features

Constructed from brass with Buna-N seals, this female half quick disconnect coupling is rated for a wide operating temperature range starting at -40°F and supports flow rates up to 157.2 gallons per minute. The push-to-connect end type allows fast coupling and decoupling without special tools, making it well suited for applications where frequent line changes are required.

The Danfoss / Eaton Hansen Cplng is part of the Hansen 600 Series and carries OSHA compliance. Designed as a two-way valve female half, it fits a broad range of pneumatic and industrial service environments including welding, shipyard work, construction, breathing equipment, and nitrous oxide systems. The design exceeds ISO 16028 operating pressure requirements.

SKU: GR608

Supplier Part Number (MPN): GR608

Specifications

Brand
Danfoss
Color
Green
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Style
Manual
Connection Type
Barbed
Connection Type 1
Male Hose Barb
Connection Type 2
Male Hose Barb
Dimensions
2.47 in L x 1 in W x 1 in H
Finish
Nickel-Plated
Fitting Type
Coupling
For Use With
Compressed Air and Other Gases
Hex Size
11/16 in
Latch Type
Push/Pull
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
1500 psi
Operating Temperature
-40 to 250 deg F
Safety Locking Mechanism
Sleeve Lock
Seal Material
NBR
Series
600 Series
Thread Size
1/4-18
Valve Type
2-Way

Product Questions & Answers (1)

Question by: Vince F on Jan 5, 2026, 12:42 PM
Reckon this'll hold up alright in a welding shop environment, with all the sparks and whatnot?
Answer by: Customer Support on Jan 7, 2026, 8:59 AM
Built with brass and Buna-N seals, this quick disconnect coupling handles general pneumatic, welding, and shipyard applications. It's also OSHA compliant, so it should fit right in for those purposes.
