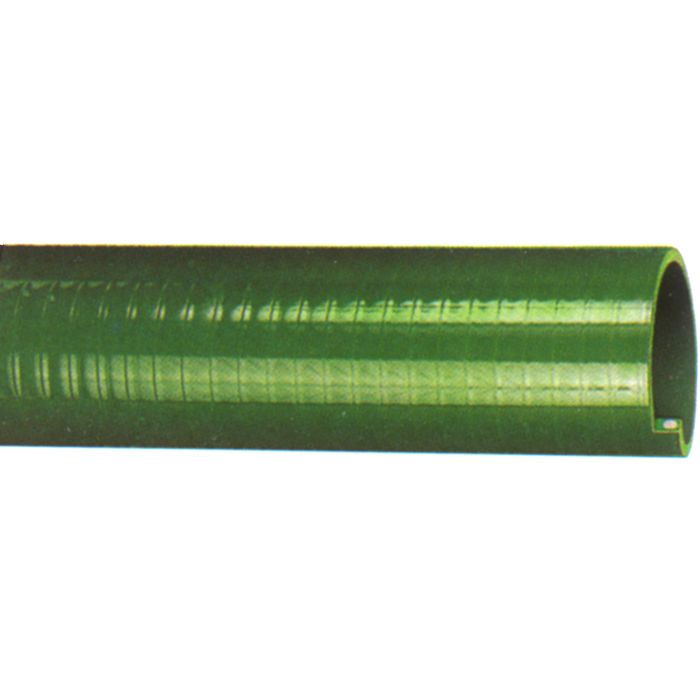

Green PVC Water Suction & Discharge Hose

Description & Features

Application	General purpose suction and transfer applications in construction and mining. Irrigation lines, rock dusting, wellpoint systems, agri-foam systems, liquid fertilizer transfer. Please review application requirements and limitations found in
Construction	Solid olive green PVC body. Rigid thermoplastic helix reinforcement.
Fittings	Shank Type (Aluminum, Steel, Brass, Stainless Steel). Cam & Groove (Aluminum, Polypropylene)
Fittings & Fitting Attachment Suggestions	• Cam & Groove or Shank Type fittings attached with preformed clamps (except for 6 inch and 8 inch sizes). NOTE: 6 inch and 8 inch I.D. sizes have a convoluted cover for greater flexibility. • Preformed clamps will not work with these two sizes. For these two sizes, use
Temperature Range	-4°F to 150°F. (Actual service temperature range is application-dependent).

Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure @ 68F	Maximum Operating Pressure @ 104F	Vacuum Rating at 68F	Vacuum Rating at 104F	Minimum Bend Radius	Package Qty.
GR200-PVC-SUCTIO Green PVC Water Hose	2	2.32	65	45	28	24	7	100
GR300-PVC-SUCTIO Green PVC Water Hose	3	3.43	60	40	28	22	10	100
GR600-PVC-SUCTIO Green PVC Water Hose	6	6.75	40	25	28	20	30	100
GR100-PVC-SUCTIO Green PVC Water Hose	1	1.26	85	60	28	26	3	100

Product Questions & Answers (1)

Question by: Pete P on Nov 25, 2025, 6:11 AM

What kind of fittings should I use with this hose if I'm hooking it up to a pump?

Answer by: Customer Support on Nov 26, 2025, 8:58 AM

Shank type fittings made of aluminum, steel, brass, or stainless steel will work. Cam and groove fittings made of aluminum or polypropylene are also an option.
