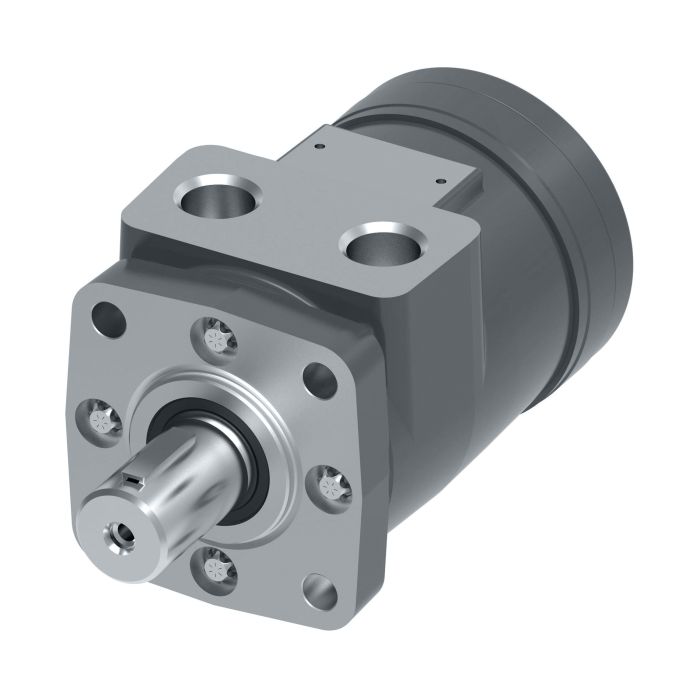

main product photo

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn H Series Spool Geroler is engineered to deliver optimal functionality in demanding industrial settings. This geroter motor features a displacement of 5.90 cubic inches per revolution and is equipped with a robust 4 bolt mounting flange.

Its 1 inch straight keyed shaft combined with 1/2 NPT ports ensures seamless integration with industrial sweepers floor polishers agricultural augers harvesters and seeders.

The design emphasizes extended bearing life and increased shaft seal contributing to the motor's longevity and reliability. With a maximum torque rating of 155 newton metres it is well-suited for heavy-duty tasks.

It operates efficiently at a maximum case pressure of 1500 PSI and can withstand operating temperatures up to 180 F. Recommended fluids are premium quality anti-wear type hydraulic fluids ensuring optimal performance and extended service intervals.

To assure best motor life a break-in period of approximately one hour at 30% of rated pressure is recommended. Per ISO Cleanliness Code level 18/13 is advised for filtration.

Identified with the catalog number C1AG23 this motor also labeled as Char-Lynn Hydraulic Motors maintains a compact yet powerful profile suitable for various industrial applications.

MPN: EAR99

Supplier Part Number: 101-1003-009

Specifications

Application
Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
Design Code
9
Displacement
5.90
Displacement
5.9
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Compact yet powerful|Extended bearing life|Increased shaft seal
Identification
None
Mount
4 Bolt
Mount
4 Bolt
Port Type
.500-14 NPTF Dryseal Pipe Thread Ports
Ports
1/2 NPT
Ports
1/2 NPT
Shaft
1 in. Straight Keyed
Shaft
1 in. Straight Keyed
Supplier Part Number
101-1003-009
Torque Rating
155 newton metre
Torque Rating
155 newton metre
Valve Options
None
Alternate Part Numbers
Alternate Part Number 101-1003-009, Alternate Part Number 20012292, Alternate Part Number C1AG23, Alternate Part Number MINO-00162X00112
Product Weight
11.64 lbs

Related Documents

Similar Products

Model Number Displacement Mount Shaft Ports Features Price Action
H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1006 H Series Geroter Motor

14.1

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1040 H Series Geroter Motor

22.6

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1001 H Series Geroter Motor

2.8

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1002 H Series Geroter Motor

4.5

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1003 H Series Geroter Motor

5.9

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1004 H Series Geroter Motor

9.7

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1005 H Series Geroter Motor

11.3

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1007 H Series Geroter Motor

17.9

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1009 H Series Geroter Motor

2.8

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1010 H Series Geroter Motor

4.5

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1011 H Series Geroter Motor

5.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1012 H Series Geroter Motor

9.7

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1013 H Series Geroter Motor

11.3

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1014 H Series Geroter Motor

14.1

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1015 H Series Geroter Motor

17.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1016 H Series Geroter Motor

22.6

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1025 H Series Geroter Motor

2.8

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1026 H Series Geroter Motor

4.5

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1027 H Series Geroter Motor

5.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1028 H Series Geroter Motor

9.7

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1029 H Series Geroter Motor

11.3

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 14.10 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1030 H Series Geroter Motor

14.1

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1031 H Series Geroter Motor

17.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1032 H Series Geroter Motor

22.6

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1033 H Series Geroter Motor

2.8

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1034 H Series Geroter Motor

4.5

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1035 H Series Geroter Motor

5.9

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1039 H Series Geroter Motor

17.9

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1700 H Series Geroter Motor

2.2

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1702 H Series Geroter Motor

7.3

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1704 H Series Geroter Motor

2.2

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 3.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1705 H Series Geroter Motor

3.6

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1706 H Series Geroter Motor

7.3

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 8.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1707 H Series Geroter Motor

8.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1749 H Series Geroter Motor

2.2

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 8.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1752 H Series Geroter Motor

8.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1753 H Series Geroter Motor

2.2

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 3.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1754 H Series Geroter Motor

3.6

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1755 H Series Geroter Motor

7.3

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

Product Questions & Answers (2)

Question by: Rex R on Nov 8, 2025, 2:25 PM
Will this Eaton Char-Lynn motor work alright on a seeder?
Answer by: Customer Support on Nov 9, 2025, 6:01 PM
This H Series geroter motor is definitely suited for agricultural seeders, as well as harvesters and augers.
Question by: Janice B on Jul 6, 2025, 3:21 PM
got a motor mount already drilled for a 4 bolt flange, is this one set up that way and what size shaft are we talking
Answer by: Customer Support on Jul 7, 2025, 9:47 PM
It uses a 4 bolt mounting flange and it comes with a 1 inch straight keyed shaft, so it matches the common 4 bolt pattern setup and a 1 inch keyed drive arrangement.
