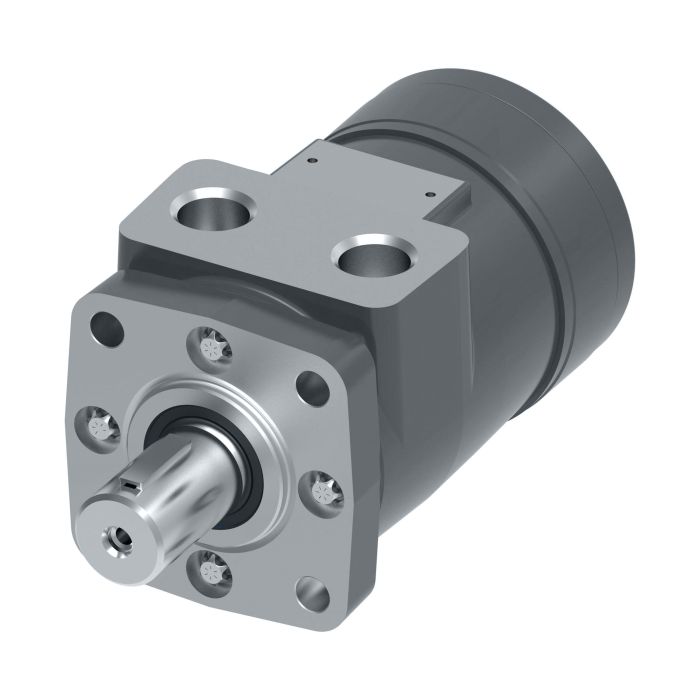

main product photo

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Ask A Question

Description & Features

Designed for applications such as agricultural augers harvesters seeders and industrial sweepers the Danfoss / Eaton Char-Lynn H Series Spool Geroler motor provides reliable performance. It features a displacement of 9.7 cu in/rev and utilizes a 4 bolt mounting flange.

With a 1-inch straight keyed shaft and 1/2 NPT ports this motor is engineered for durability. Its compact yet powerful design ensures efficient operation in demanding environments.

The motor includes extended bearing life and increased shaft seal making it suitable for high-stress applications. Its torque rating is 233 newton metres and it operates effectively at a maximum case pressure of 1500 PSI. Recommended break-in procedures and fluid filtration guidelines ensure optimal functionality.

Fluid viscosity requirements and maximum operating temperature specifications are met ensuring the motor's longevity and reliability. Designed by Danfoss Power Solutions II LLC (Char-Lynn) it aligns with ISO cleanliness codes for operational integrity.

Supplier Part Number: 101-1004-009

Specifications

Application
Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
Design Code
9
Displacement
9.70
Displacement
9.7
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Compact yet powerful|Extended bearing life|Increased shaft seal
Identification
None
Mount
4 Bolt
Mount
4 Bolt
Port Type
.500-14 NPTF Dryseal Pipe Thread Ports
Ports
1/2 NPT
Ports
1/2 NPT
Shaft
1 in. Straight Keyed
Shaft
1 in. Straight Keyed
Supplier Part Number
101-1004-009
Torque Rating
233 newton metre
Torque Rating
233 newton metre
Valve Options
None
Alternate Part Numbers
Alternate Part Number 101-1004-009, Alternate Part Number C1AG24, Alternate Part Number MINO-00162X00116
Product Weight
12.50 lbs

Related Documents

Similar Products

Model Number Displacement Mount Shaft Ports Features Price Action
H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1006 H Series Geroter Motor

14.1

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1040 H Series Geroter Motor

22.6

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1001 H Series Geroter Motor

2.8

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1002 H Series Geroter Motor

4.5

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1003 H Series Geroter Motor

5.9

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1004 H Series Geroter Motor

9.7

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1005 H Series Geroter Motor

11.3

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1007 H Series Geroter Motor

17.9

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1009 H Series Geroter Motor

2.8

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1010 H Series Geroter Motor

4.5

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1011 H Series Geroter Motor

5.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1012 H Series Geroter Motor

9.7

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1013 H Series Geroter Motor

11.3

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1014 H Series Geroter Motor

14.1

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1015 H Series Geroter Motor

17.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1016 H Series Geroter Motor

22.6

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1025 H Series Geroter Motor

2.8

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1026 H Series Geroter Motor

4.5

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1027 H Series Geroter Motor

5.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1028 H Series Geroter Motor

9.7

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1029 H Series Geroter Motor

11.3

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 14.10 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1030 H Series Geroter Motor

14.1

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1031 H Series Geroter Motor

17.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1032 H Series Geroter Motor

22.6

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1033 H Series Geroter Motor

2.8

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1034 H Series Geroter Motor

4.5

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1035 H Series Geroter Motor

5.9

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1039 H Series Geroter Motor

17.9

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1700 H Series Geroter Motor

2.2

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1702 H Series Geroter Motor

7.3

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1704 H Series Geroter Motor

2.2

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 3.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1705 H Series Geroter Motor

3.6

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1706 H Series Geroter Motor

7.3

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 8.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1707 H Series Geroter Motor

8.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1749 H Series Geroter Motor

2.2

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 8.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1752 H Series Geroter Motor

8.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1753 H Series Geroter Motor

2.2

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 3.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1754 H Series Geroter Motor

3.6

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1755 H Series Geroter Motor

7.3

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

Product Questions & Answers (2)

Question by: Stan M on Jan 26, 2026, 3:59 PM
got a motor mount with a 4 bolt pattern already. is this one set up for that, and what kinda shaft does it have?
Answer by: Customer Support on Jan 28, 2026, 6:57 AM
It uses a 4 bolt mounting flange and comes with a 1 inch straight keyed shaft, so it matches the common 4 bolt flange setup and a straight keyed output.
Question by: Sherry B on Sep 4, 2025, 4:14 PM
What kind of machines does this motor usually go on?
Answer by: Customer Support on Sep 6, 2025, 6:57 AM
It's designed for agricultural equipment like augers, harvesters, and seeders. You'll also find it in industrial sweepers and floor polishers.
