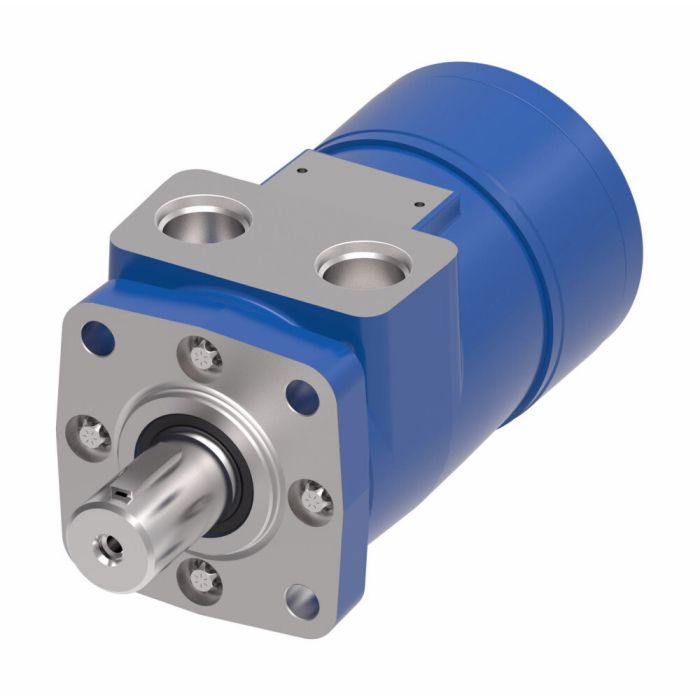

H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Description & Features

This Eaton Char-Lynn H Series Geroter Motor is designed for demanding hydraulic applications, offering a compact yet powerful solution with extended bearing life and an improved shaft seal. With a displacement of 14.10 cubic inches per revolution, this motor delivers reliable performance in various industrial settings.

The motor features a 4-bolt mounting flange and a 1-inch straight keyed shaft for secure installation and efficient power transfer. The 7/8-14 St.Thd O-Ring ports ensure leak-free connections in hydraulic circuits. Common applications include agricultural augers, harvesters, seeders, and industrial sweepers and floor polishers.

SKU: 101-1014

Supplier Part Number (MPN): 101-1014-009

Alternate Part Numbers: C1KY92

Specifications

Application Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers	Design Code 9	Displacement 14.10	Displacement 14.1	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Compact yet powerful\|Extended bearing life\|Increased shaft seal	Identification None	Mount 4 Bolt	Mount 4 Bolt	Port Type .875-14 UNF-2B SAE O-Ring Ports	Ports 7/8-14 St.Thd O-Ring	Ports 7/8-14 St.Thd O-Ring	Shaft 1 in. Straight Keyed	Shaft 1 in. Straight Keyed	Supplier Part Number 101-1014-009	Torque Rating 302 newton metre	Torque Rating 302 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 101-1014-009, Alternate Part Number C1KY92	Product Weight 13.09 lbs

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
101-1006 H Series Geroter Motor	14.1	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1040 H Series Geroter Motor	22.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1001 H Series Geroter Motor	2.8	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1002 H Series Geroter Motor	4.5	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1003 H Series Geroter Motor	5.9	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1004 H Series Geroter Motor	9.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1005 H Series Geroter Motor	11.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1007 H Series Geroter Motor	17.9	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1009 H Series Geroter Motor	2.8	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1010 H Series Geroter Motor	4.5	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1011 H Series Geroter Motor	5.9	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1012 H Series Geroter Motor	9.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1013 H Series Geroter Motor	11.3	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1014 H Series Geroter Motor	14.1	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1015 H Series Geroter Motor	17.9	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1016 H Series Geroter Motor	22.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1025 H Series Geroter Motor	2.8	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1026 H Series Geroter Motor	4.5	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1027 H Series Geroter Motor	5.9	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1028 H Series Geroter Motor	9.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1029 H Series Geroter Motor	11.3	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1030 H Series Geroter Motor	14.1	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1031 H Series Geroter Motor	17.9	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1032 H Series Geroter Motor	22.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1033 H Series Geroter Motor	2.8	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1034 H Series Geroter Motor	4.5	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1035 H Series Geroter Motor	5.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1039 H Series Geroter Motor	17.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1700 H Series Geroter Motor	2.2	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1702 H Series Geroter Motor	7.3	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1704 H Series Geroter Motor	2.2	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1705 H Series Geroter Motor	3.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1706 H Series Geroter Motor	7.3	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1707 H Series Geroter Motor	8.9	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1749 H Series Geroter Motor	2.2	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1752 H Series Geroter Motor	8.9	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1753 H Series Geroter Motor	2.2	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1754 H Series Geroter Motor	3.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1755 H Series Geroter Motor	7.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal

Product Questions & Answers (3)

Question by: Neil C on Aug 14, 2025, 10:49 AM

got a harvester auger that needs a motor swap and i keep seeing different displacement options out there, is 14.1 cubic inches per rev gonna be enough grunt for that kind of load?

Answer by: Customer Support on Aug 16, 2025, 10:38 AM

For agricultural auger applications, 14.1 cu in/rev is well within the intended use range for this motor. It's rated at 302 Newton meters of torque, which translates to solid pulling power for auger and harvester work. That said, before you put it under full load, Eaton Char-Lynn recommends running it for roughly an hour at about 30 percent of rated pressure to break it in properly. Skipping that step tends to shorten motor life, especially on heavy-duty harvest equipment. Make sure the motor is fully primed with fluid before any load goes on it.

Question by: Janice R on Feb 22, 2026, 8:08 AM

Will this motor work alright on a seeder for planting season?

Answer by: Customer Support on Feb 23, 2026, 3:02 PM

This H series geroter motor is listed as being suitable for agricultural augers and seeders, so it should do the job. Just make sure the specs line up with your equipment.

Question by: Eddie C on Dec 13, 2025, 7:16 AM

got a motor with 7/8-14 o-ring ports and a 4 bolt mount, is that what this one comes with?

Answer by: Customer Support on Dec 15, 2025, 7:14 AM

This motor is set up with a 4 bolt mounting flange and .875-14 UNF-2B SAE O-ring ports, which is the same as 7/8-14 straight thread O-ring ports.
