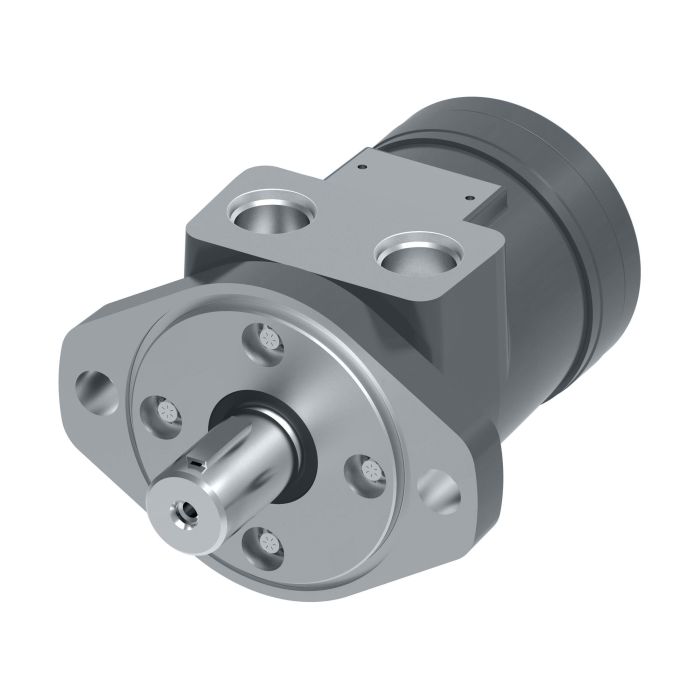

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Ask A Question

Description & Features

Engineered for demanding applications such as agricultural augers harvesters seeders and industrial sweepers the Danfoss / Eaton Char-Lynn H Series Spool Geroler combines compact dimensions with robust performance. Offering a displacement of 5.9 cu in/rev and featuring a 2 bolt mounting flange it ensures reliable and extended service life.

The 1 in. straight keyed shaft and 7/8-14 St.Thd O-Ring ports are designed for precise and secure connections. The motor is built to withstand operating pressures up to 1500 PSI making it an ideal choice for various industrial tasks.

With advanced features such as improved bearing life and enhanced shaft seal the motor minimizes maintenance and maximizes uptime. The recommended break-in procedure and ISO cleanliness code level 18/13 filtration enhance the motor's longevity and performance. It is optimized for use with premium quality anti-wear type hydraulic fluids.

MPN: C1JW15

Supplier Part Number: 101-1035-009

Specifications

Application
Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
Design Code
9
Displacement
5.90
Displacement
5.9
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Compact yet powerful|Extended bearing life|Increased shaft seal
Identification
None
Mount
2 Bolt
Mount
2 Bolt
Port Type
.875-14 UNF-2B SAE O-Ring Ports
Ports
7/8-14 St.Thd O-Ring
Ports
7/8-14 St.Thd O-Ring
Shaft
1 in. Straight Keyed
Shaft
1 in. Straight Keyed
Supplier Part Number
101-1035-009
Torque Rating
155 newton metre
Torque Rating
155 newton metre
Valve Options
None
Alternate Part Numbers
Alternate Part Number 101-1035-009, Alternate Part Number C1JW15
Product Weight
12.34 lbs

Related Documents

Similar Products

Model Number Displacement Mount Shaft Ports Features Price Action
H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1006 H Series Geroter Motor

14.1

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1040 H Series Geroter Motor

22.6

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1001 H Series Geroter Motor

2.8

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1002 H Series Geroter Motor

4.5

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1003 H Series Geroter Motor

5.9

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1004 H Series Geroter Motor

9.7

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1005 H Series Geroter Motor

11.3

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1007 H Series Geroter Motor

17.9

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1009 H Series Geroter Motor

2.8

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1010 H Series Geroter Motor

4.5

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1011 H Series Geroter Motor

5.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1012 H Series Geroter Motor

9.7

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1013 H Series Geroter Motor

11.3

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1014 H Series Geroter Motor

14.1

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1015 H Series Geroter Motor

17.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1016 H Series Geroter Motor

22.6

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1025 H Series Geroter Motor

2.8

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1026 H Series Geroter Motor

4.5

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1027 H Series Geroter Motor

5.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1028 H Series Geroter Motor

9.7

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1029 H Series Geroter Motor

11.3

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 14.10 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1030 H Series Geroter Motor

14.1

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1031 H Series Geroter Motor

17.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1032 H Series Geroter Motor

22.6

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1033 H Series Geroter Motor

2.8

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1034 H Series Geroter Motor

4.5

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1035 H Series Geroter Motor

5.9

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1039 H Series Geroter Motor

17.9

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1700 H Series Geroter Motor

2.2

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1702 H Series Geroter Motor

7.3

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1704 H Series Geroter Motor

2.2

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 3.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1705 H Series Geroter Motor

3.6

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1706 H Series Geroter Motor

7.3

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 8.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1707 H Series Geroter Motor

8.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1749 H Series Geroter Motor

2.2

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 8.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1752 H Series Geroter Motor

8.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1753 H Series Geroter Motor

2.2

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 3.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1754 H Series Geroter Motor

3.6

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1755 H Series Geroter Motor

7.3

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

Product Questions & Answers (1)

Question by: Melvin J on Jan 31, 2026, 7:13 PM
what's the max pressure this motor can handle before it starts givin you trouble
Answer by: Customer Support on Feb 2, 2026, 10:17 AM
Running pressure tops out at 1500 PSI for this unit. Worth noting that Eaton Char-Lynn also recommends a break-in period before you throw it into full load conditions. Run it for about an hour at roughly 30% of rated pressure first, and make sure the motor is primed with fluid before any load hits it. That step alone goes a long way toward keeping it healthy over the long haul.
