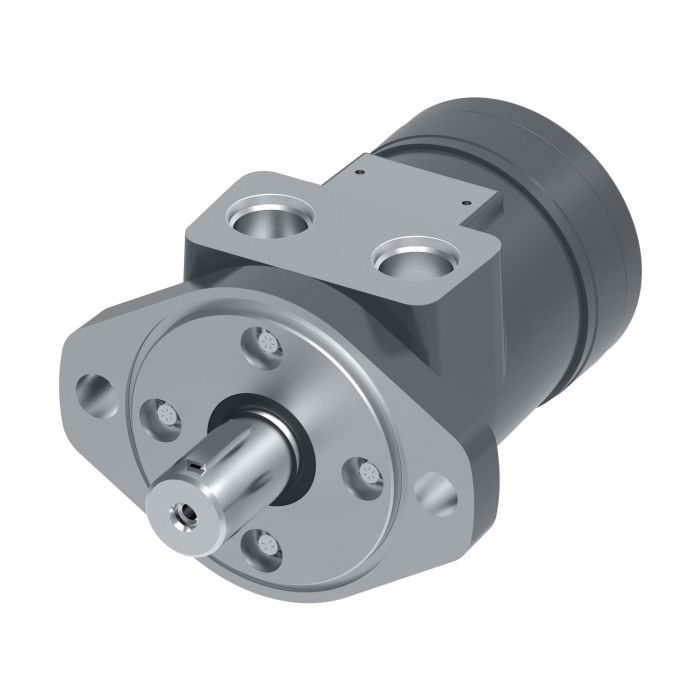

main product photo

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Ask A Question

Description & Features

Manufactured by Danfoss Power Solutions II LLC (Char-Lynn) the H Series Geroter Motor delivers a displacement of 7.30 cu in/rev with a 2 Bolt Mounting Flange. This motor is designed for use in industrial sweepers floor polishers agricultural augers harvesters and seeders.

Featuring a 1 in. straight keyed shaft and 7/8-14 St.Thd O-Ring ports it offers reliable performance with extended bearing life and increased shaft seal. The motor is built compact yet powerful ensuring efficiency in various applications.

The H Series Geroter Motor is rated with a torque of 192 newton metre and supports a maximum case pressure of 1500 PSI with an operating temperature of up to 180 F. To achieve optimal life expectancy and performance premium quality anti-wear type hydraulic fluid is recommended. The minimum viscosity at operating temperature should be the highest of either 100SUS or (20 x PSI)/RPM = SUS.

Extended motor life is assured by running it for approximately one hour at 30% of rated pressure before full load application. Recommended filtration aligns with ISO Cleanliness Code level 18/13.

Product Model Label: Char-Lynn Hydraulic Motors

Specifications

Application
Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
Design Code
9
Displacement
7.30
Displacement
7.3
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Compact yet powerful|Extended bearing life|Increased shaft seal
Identification
None
Mount
2 Bolt
Mount
2 Bolt
Port Type
.875-14 UNF-2B SAE O-Ring Ports
Ports
7/8-14 St.Thd O-Ring
Ports
7/8-14 St.Thd O-Ring
Shaft
1 in. Straight Keyed
Shaft
1 in. Straight Keyed
Supplier Part Number
101-1702-009
Torque Rating
192 newton metre
Torque Rating
192 newton metre
Valve Options
None
Alternate Part Numbers
Alternate Part Number 101-1702-009, Alternate Part Number C1LW52
Product Weight
12.64 lbs

Related Documents

Similar Products

Model Number Displacement Mount Shaft Ports Features Price Action
H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1006 H Series Geroter Motor

14.1

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1040 H Series Geroter Motor

22.6

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1001 H Series Geroter Motor

2.8

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1002 H Series Geroter Motor

4.5

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1003 H Series Geroter Motor

5.9

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1004 H Series Geroter Motor

9.7

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1005 H Series Geroter Motor

11.3

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1007 H Series Geroter Motor

17.9

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1009 H Series Geroter Motor

2.8

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1010 H Series Geroter Motor

4.5

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1011 H Series Geroter Motor

5.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1012 H Series Geroter Motor

9.7

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1013 H Series Geroter Motor

11.3

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 14.10 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1014 H Series Geroter Motor

14.1

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1015 H Series Geroter Motor

17.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1016 H Series Geroter Motor

22.6

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1025 H Series Geroter Motor

2.8

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1026 H Series Geroter Motor

4.5

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1027 H Series Geroter Motor

5.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 9.70 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1028 H Series Geroter Motor

9.7

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 11.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1029 H Series Geroter Motor

11.3

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 14.10 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1030 H Series Geroter Motor

14.1

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1031 H Series Geroter Motor

17.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 22.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1032 H Series Geroter Motor

22.6

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1033 H Series Geroter Motor

2.8

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 4.50 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1034 H Series Geroter Motor

4.5

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 5.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1035 H Series Geroter Motor

5.9

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 17.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1039 H Series Geroter Motor

17.9

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1700 H Series Geroter Motor

2.2

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1702 H Series Geroter Motor

7.3

2 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1704 H Series Geroter Motor

2.2

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 3.60 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1705 H Series Geroter Motor

3.6

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1706 H Series Geroter Motor

7.3

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 8.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1707 H Series Geroter Motor

8.9

2 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1749 H Series Geroter Motor

2.2

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 8.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1752 H Series Geroter Motor

8.9

4 Bolt

1 in. Straight Keyed

7/8-14 St.Thd O-Ring

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 2.20 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1753 H Series Geroter Motor

2.2

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 3.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1754 H Series Geroter Motor

3.6

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

H Series Geroter Motor, 7.30 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

101-1755 H Series Geroter Motor

7.3

4 Bolt

1 in. Straight Keyed

1/2 NPT

Compact yet powerful|Extended bearing life|Increased shaft seal

Product Questions & Answers (1)

Question by: Ray T on Feb 10, 2026, 7:31 PM
Will this hydraulic motor work okay for a grain auger on my farm equipment?
Answer by: Customer Support on Feb 12, 2026, 12:17 PM
This H series motor is designed for agricultural augers, among other applications like harvesters and seeders, so it should be well-suited for your grain auger.
