DANFOSS / EATON BOSFLEX HOSE

Description & Features

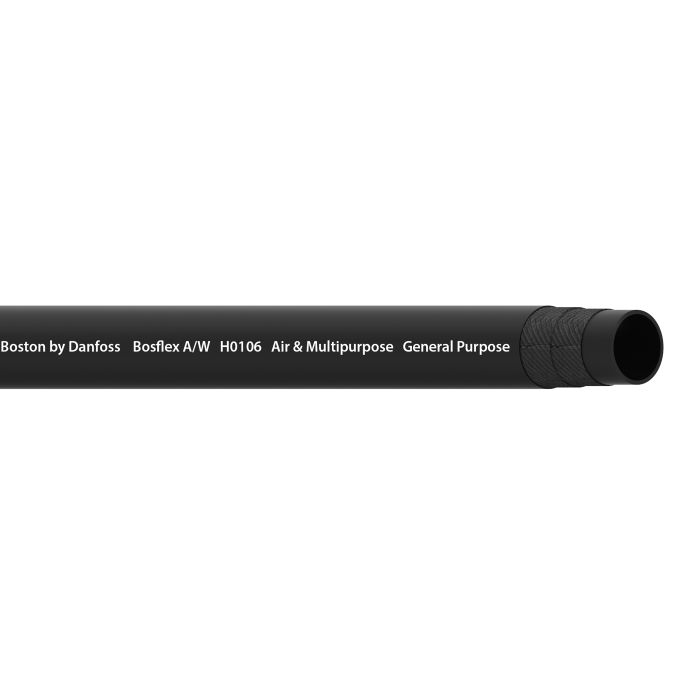

Rated for general purpose air and water service, the Danfoss / Eaton Bosflex Hose is built for dependable performance across a wide range of industrial applications. The hose features an EPDM tube and EPDM cover with a multi-spiral polyester reinforcement, offering a balanced construction suited to moderate-duty fluid and air transfer. A pin-pricked cover style supports consistent cover adhesion, while the conductive build helps manage static in applicable environments.

Sized at dash -8 with a 0.84-inch width and a minimum bend radius of 4.5 inches, this hose handles routing in space-constrained installations. It remains functional down to -40° for cold-environment use. Compatible fittings include Z-series, 1A, barbed inserts, and quick disconnects, making it adaptable to a variety of connection configurations. The black EPDM cover carries standard abrasion resistance, and ink jet lay line marking aids field identification.

SKU: H010608BK-600R

Supplier Part Number (MPN): H010608BK-600R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00115X03658	Application General purpose air and water.	Class WEB-ITEM	Color Black	Conductivity 30	Construction Multi Spiral	Cover Material EPDM	Cover Style Pin-Pricked	Dash Size -8	Brand Danfoss (Aeroquip Inc-Industrial Hose)	Brand Aeroquip	Pack Size 1.00	UOM EA	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 4.50	Minimum Bend Radius 4.5	Minimum Working Temperature -40	NMFC 70	Product Width 0.84	Qualified Hose Fittings Z, 1A, Barbed inserts, Quick Disconnect	Reinforcement Material Polyester	Supplier Part Number H010608BK-600R	Tube Material EPDM	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Wade G on Apr 27, 2025, 10:23 AM

What kind of fittings work with this hose? I've got a bunch of different ones laying around.

Answer by: Customer Support on Apr 29, 2025, 6:51 AM

This hose is qualified for use with Z-series, 1A, barbed inserts, and quick disconnect fittings.
