TIGER Chemical Suction Discharge

Description & Features

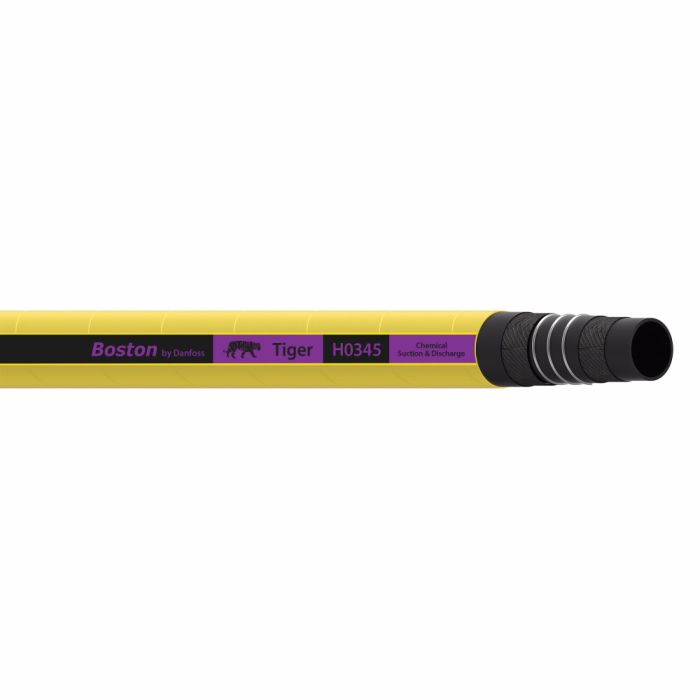

The TIGER Chemical Suction Discharge hose is designed for acid suction applications. Constructed with a multi-spiral design, this hose features a synthetic rubber cover for standard abrasion resistance and a conductive composition. Reinforcement is provided by helical wire and textile materials.

This yellow hose has a -32 dash size, a 5-inch minimum bend radius, and a minimum working temperature of -45 degrees. Compatible with cam and groove, combination nipple, and male MPT qualified hose fittings.

SKU: H034532-100

Supplier Part Number (MPN): H034532-100

Specifications

Abrasion Resistance 29	Application Acid suction.	Color Yellow	Conductivity 30	Construction Multi Spiral	Cover Material Synthetic Rubber	Dash Size -32	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Embossed	Minimum Bend Radius 5	Minimum Bend Radius 5	Minimum Working Temperature -45	NMFC 70	Product Width 2.69	Qualified Hose Fittings Cam and groove, Combination nipple, Male MPT	Reinforcement Material Helical Wire and Textile	Sub Brand None	Supplier Part Number H034532-100	Tube Material Synthetic Rubber	Product Weight 192.00 lbs

Product Questions & Answers (1)

Question by: Clint H on Sep 11, 2025, 6:42 AM

I need a hose to suck up some nasty chemicals, will this one do the job?

Answer by: Customer Support on Sep 13, 2025, 7:01 AM

This Tiger Chemical Suction Discharge hose is designed specifically for acid suction applications.
