DANFOSS / EATON CHEMCAT - GREEN

Description & Features

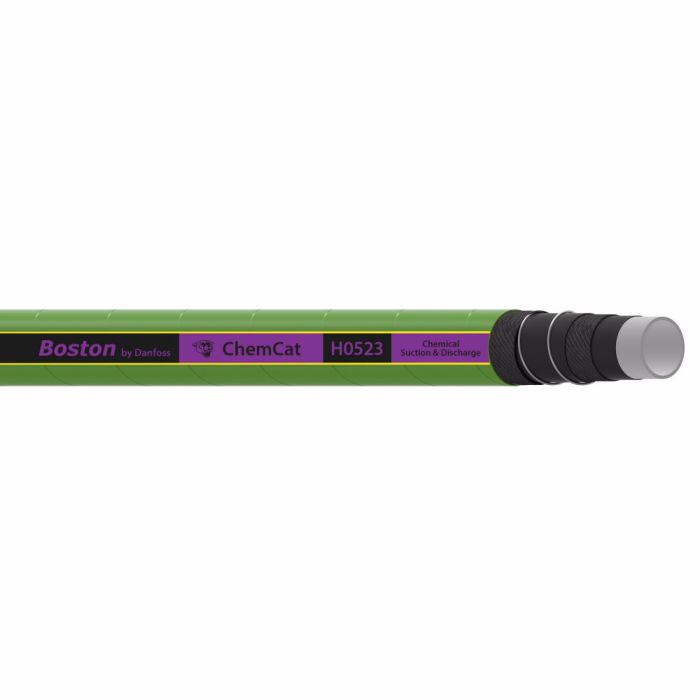

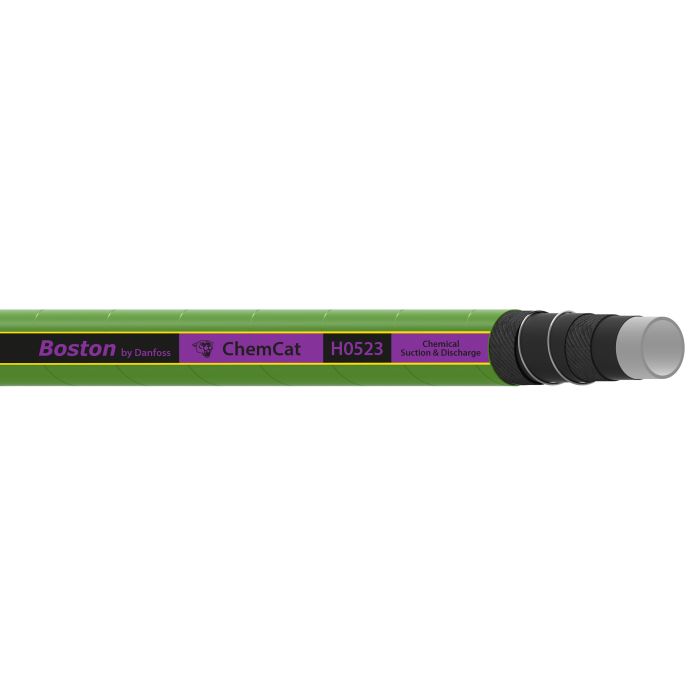

This Eaton Industrial Hose, known as DANFOSS / EATON CHEMCAT - GREEN, is designed for chemical transfer applications. Constructed with a multi-braid reinforcement and a synthetic rubber cover, this hose offers standard abrasion resistance. Its tube is made of thermoplastic material, ensuring compatibility with a wide range of chemicals.

The hose is green, features an embossed lay line style, and complies with FDA standards. It uses a dash size of -12 and can be fitted with cam and groove, combination nipple, and male NPT fittings. It is designed to remain flexible in temperatures as low as -40 degrees. The minimum bend radius is 4 inches.

SKU: H052312GN-100

Supplier Part Number (MPN): H052312GN-100

Specifications

Abrasion Resistance 29	Application Chemical transfer.	Color Green	Compliances FDA Approved	Construction Multi Braid	Cover Material Synthetic Rubber	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Embossed	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -40	Product Width 1.20	Qualified Hose Fittings Cam and groove, Combination nipple, Male NPT	Reinforcement Material Fiber and Helical Wire	Sub Brand None	Supplier Part Number H052312GN-100	Tube Material Thermoplastic	Product Weight 0.76 lbs

Product Questions & Answers (1)

Question by: Phil S on Jul 5, 2025, 5:17 PM

we transfer a pretty wide mix of chemicals through our lines, does the tube material on this hose hold up to that kind of variety, or is it real specific about what it can handle?

Answer by: Customer Support on Jul 6, 2025, 6:31 PM

Thermoplastic tube construction is one of the better choices when you're running different chemical types through the same line. It handles a broad range of chemicals without breaking down the way some rubber compounds do, and it carries FDA approval on top of that, which matters if any of your transfer work touches food-grade or regulated materials.
