Danfoss / Eaton Industrial Hose Chemical UHMW

Description & Features

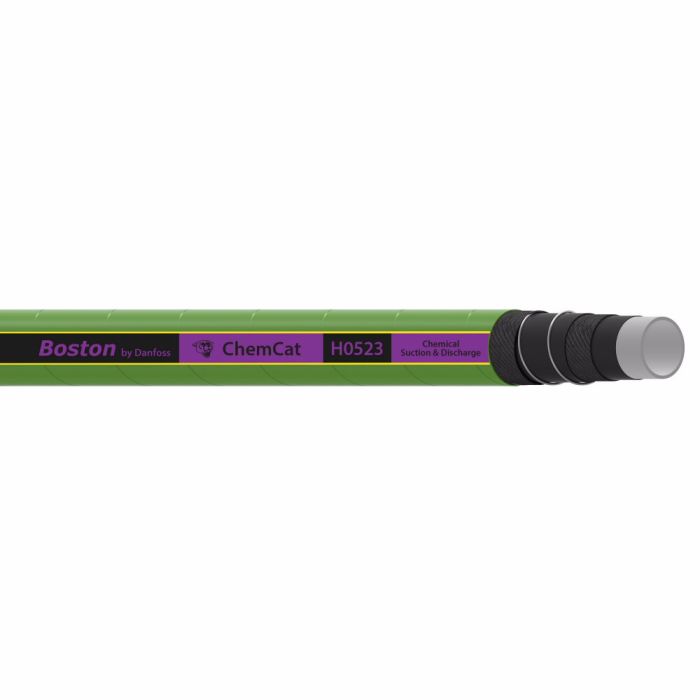

Designed for chemical transfer applications, this green-jacketed hose from Danfoss Power Solutions features a UHMW thermoplastic tube that provides broad chemical compatibility across a wide range of industrial media. The synthetic rubber cover offers standard abrasion resistance, while the multi-braid fiber and helical wire reinforcement supports structural integrity under working conditions.

The Danfoss / Eaton Industrial Hose Chemical UHMW carries FDA approval, making it suitable for use in food-grade or regulated chemical transfer environments. Compatible fittings include cam and groove, combination nipple, and male NPT configurations. At dash size -16 with a minimum bend radius of 5.5 inches, it handles routing in space-constrained installations. Rated for temperatures as low as -40°F, it performs reliably in cold-environment applications.

Lay line markings are embossed directly into the cover for clear identification during and after installation.

SKU: H052316GN-100

Supplier Part Number (MPN): H052316GN-100

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00115X00400	Application Chemical transfer.	Color Green	Compliances FDA Approved	Construction Multi Braid	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Embossed	Minimum Bend Radius 5.50	Minimum Bend Radius 5.5	Minimum Working Temperature -40	Product Width 1.53	Qualified Hose Fittings Cam and groove, Combination nipple, Male NPT	Reinforcement Material Fiber and Helical Wire	Sub Brand None	Supplier Part Number H052316GN-100	Tube Material Thermoplastic	Product Weight 0.69 lbs

Product Questions & Answers (2)

Question by: Floyd B on Oct 2, 2025, 9:24 AM

got a tight spot to run hose, how sharp can i bend this -16 without kinking it

Answer by: Customer Support on Oct 3, 2025, 8:20 PM

For the -16 size, the minimum bend radius is 5.5 inches, so you want your routing to stay at or above that radius to keep the hose from being forced into too tight of a turn.

Question by: Rex H on Jul 5, 2025, 4:51 PM

If I'm movin' chemicals with this hose, what kind of fittings work best?

Answer by: Customer Support on Jul 6, 2025, 5:53 PM

Cam and groove, combination nipple, and male NPT fittings are all listed as being compatible with this Danfoss / Eaton chemical hose.
