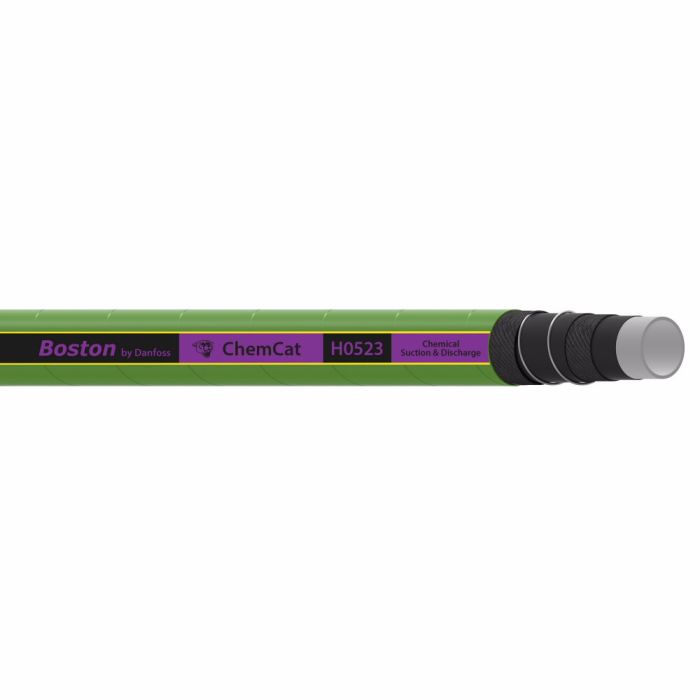

Danfoss / Eaton Industrial Hose Chemical UHMW

Description & Features

The Danfoss / Eaton Industrial Hose Chemical UHMW is designed for chemical transfer applications. Constructed with a thermoplastic tube and synthetic rubber cover, this hose features multi-braid fiber and helical wire reinforcement.

This -20 size hose is green in color and complies with FDA standards. It is compatible with cam and groove, combination nipple, and male NPT qualified hose fittings. Designed for safety and reliability, this hose offers a minimum bend radius of 6 inches and a minimum working temperature of -40 degrees.

SKU: H052320GN-100

Supplier Part Number (MPN): H052320GN-100

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00115X00408	Application Chemical transfer.	Color Green	Compliances FDA Approved	Construction Multi Braid	Cover Material Synthetic Rubber	Dash Size -20	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Embossed	Minimum Bend Radius 6	Minimum Bend Radius 6	Minimum Working Temperature -40	Product Width 1.87	Qualified Hose Fittings Cam and groove, Combination nipple, Male NPT	Reinforcement Material Fiber and Helical Wire	Sub Brand None	Supplier Part Number H052320GN-100	Tube Material Thermoplastic	Product Weight 0.82 lbs

Product Questions & Answers (1)

Question by: Frank O on Apr 26, 2025, 12:46 PM

Can this hose handle pretty much any chemical I throw at it?

Answer by: Customer Support on Apr 28, 2025, 7:46 AM

This hose is designed for chemical transfer applications, but it's crucial to verify compatibility with the specific chemicals you intend to use. The thermoplastic tube material offers broad resistance, but consulting chemical compatibility charts is always best practice for safety and longevity.
