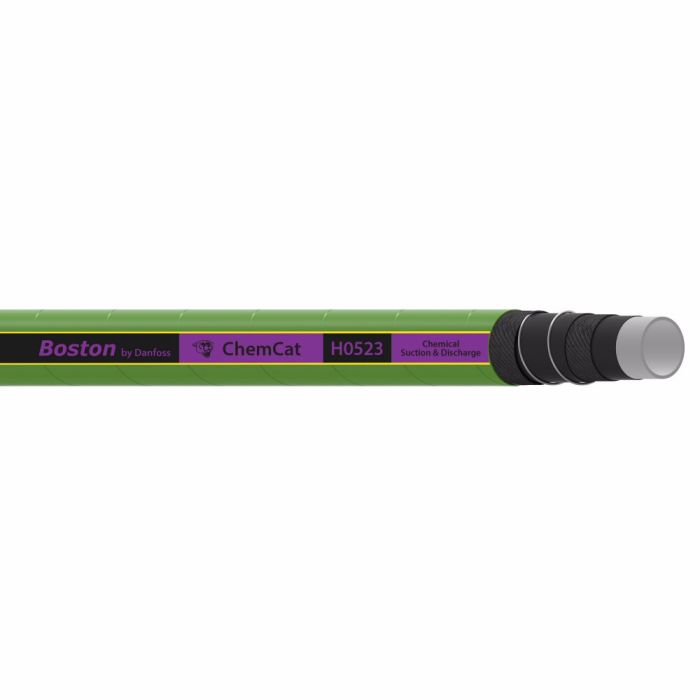

DANFOSS / EATON INDUSTRIAL HOSE CHEMICAL UHMW

Description & Features

This Danfoss / Eaton industrial hose is designed for chemical transfer applications. Constructed with a thermoplastic tube and synthetic rubber cover, it offers standard abrasion resistance and features a multi-braid reinforcement of fiber and helical wire.

The chemical hose is green, with an embossed lay line style. Compliant with FDA standards, it's suitable for use with cam and groove, combination nipple, and male NPT qualified hose fittings. It has a minimum bend radius of 8 and a minimum working temperature of -40.

SKU: H052340GN-100

Supplier Part Number (MPN): H052340GN-100

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00115X00429	Application Chemical transfer.	Color Green	Compliances FDA Approved	Construction Multi Braid	Cover Material Synthetic Rubber	Dash Size -40	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Embossed	Minimum Bend Radius 8	Minimum Bend Radius 8	Minimum Working Temperature -40	Product Width 3.13	Qualified Hose Fittings Cam and groove, Combination nipple, Male NPT	Reinforcement Material Fiber and Helical Wire	Sub Brand None	Supplier Part Number H052340GN-100	Tube Material Thermoplastic	Product Weight 1.14 lbs

Product Questions & Answers (1)

Question by: Warren C on Oct 22, 2025, 7:06 AM

What’s the lowest temp this hose can handle without getting brittle?

Answer by: Customer Support on Oct 23, 2025, 9:55 PM

This chemical hose is rated to handle temperatures as low as -40 degrees.
