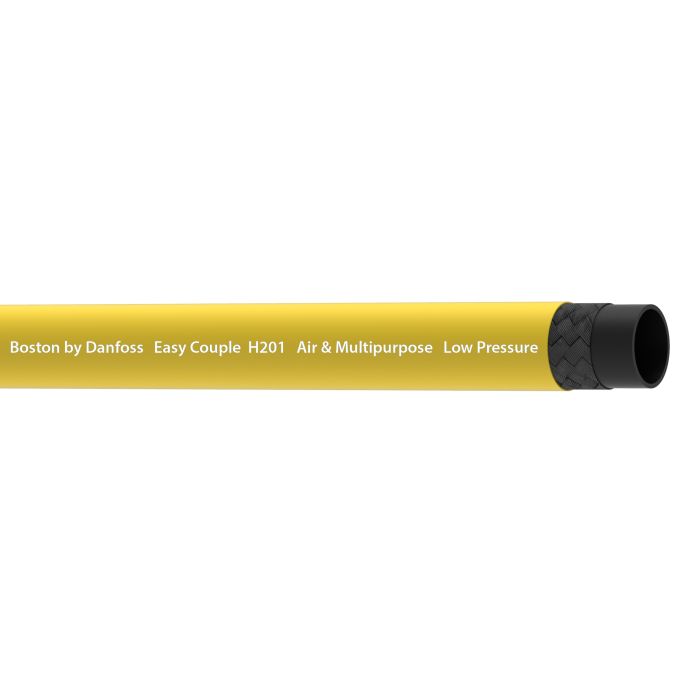

Danfoss / Eaton H201 EASY COUPLE GEN PUR YE

Description & Features

The Danfoss / Eaton H201 EASY COUPLE GEN PUR YE is suitable for air and multi-purpose applications. Constructed with a 1 ply braid reinforcement and synthetic rubber tube and cover, this hose is both conductive and MSHA approved. It also meets RMA Class A certifications.

This yellow hose offers standard abrasion resistance and is designed for safety and reliability. It is compatible with socketless and push-on couplings, as well as B series and quick disconnect fittings. The minimum bend radius is 3 inches, and it can operate in temperatures as low as -40 degrees.

SKU: H20104YW-250R

Supplier Part Number (MPN): H20104YW-250R

Alternate Part Numbers: IGH20104YW-250R

Specifications

Brand Boston® by Danfoss	Abrasion Resistance Standard	Conditional Temp Range -40 to 212 deg F Air	Cover Material Chloroprene Blend	Dash Size 04	For Use With Socketless, Push-On Couplings, B Series, Quick-Disconnect Fittings	Hose Color Yellow	Hose Type Conductive, Low-Pressure	Inside Diameter 1/4 in	Lay Line Style Inkjet	nmfc 70	Nominal Size 1/4 in	Package Form Reel	Reinforcement 1-Ply Braided Fabric	Resistance Abrasion	Resistance Properties Abrasion	Segment Code C	Series H201 Easy Couple Series	Tube Material Nitrile

Product Questions & Answers (1)

Question by: Janice E on Oct 12, 2025, 6:01 AM

Hey, will this hose hold up okay in an air compressor setup?

Answer by: Customer Support on Oct 13, 2025, 4:08 PM

For air and multi-purpose applications, this hose is definitely suitable. It's also MSHA approved, which should give you extra peace of mind.
