Danfoss / Eaton EASYCOUPLE BU 3/8ID 250PSI

Description & Features

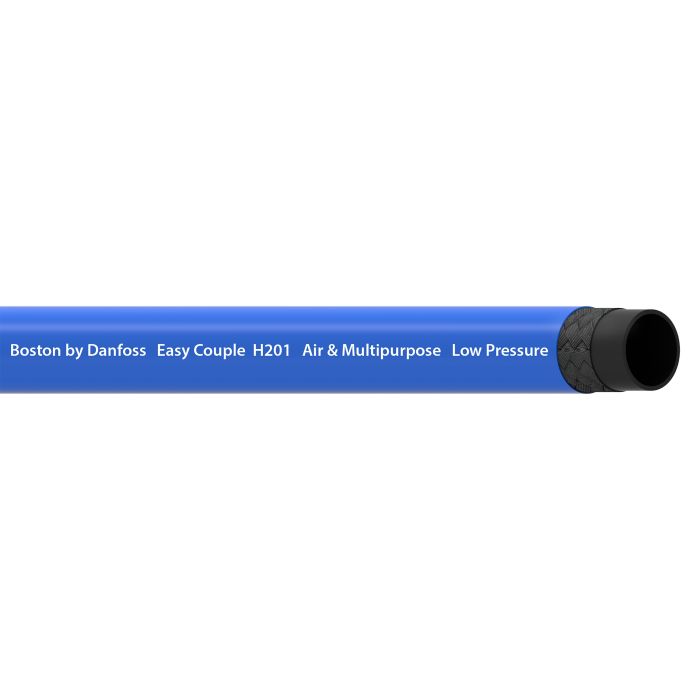

The Danfoss / Eaton EASYCOUPLE BU is a versatile hose designed for air and multi-purpose applications. Constructed with a 1 Ply Braid reinforcement material and synthetic rubber for both the tube and cover, this hose offers standard abrasion resistance and reliable performance.

This blue, conductive hose is MSHA Approved (MSHA IC-84/50) and meets RMA Class A certifications. It has a 3/8 inch inside diameter (-6 Dash Size) and a minimum bend radius of 3 inches. The hose is designed for use with socketless, push-on couplings, B series, and quick disconnect fittings. It can operate at a minimum working temperature of -40 degrees.

SKU: H20106BU-500R

Supplier Part Number (MPN): H20106BU-500R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00115X00890	Application Air and multi purpose.	Certifications RMA Class A	Color Blue	Compliances MSHA Approved\|MSHA IC-84/50	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -6	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.65	Qualified Hose Fittings Socketless, Push-on couplings, B series, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H20106BU-500R	Tube Material Synthetic Rubber	Product Weight 0.09 lbs

Product Questions & Answers (1)

Question by: Frank Y on Jan 31, 2026, 6:31 AM

Can this hose handle being bent a good bit? I'm needing something that can go around corners without kinking.

Answer by: Customer Support on Feb 1, 2026, 9:54 PM

It has a minimum bend radius of 3 inches, so it can handle some bending. Just make sure not to go tighter than that to avoid damaging the hose.
