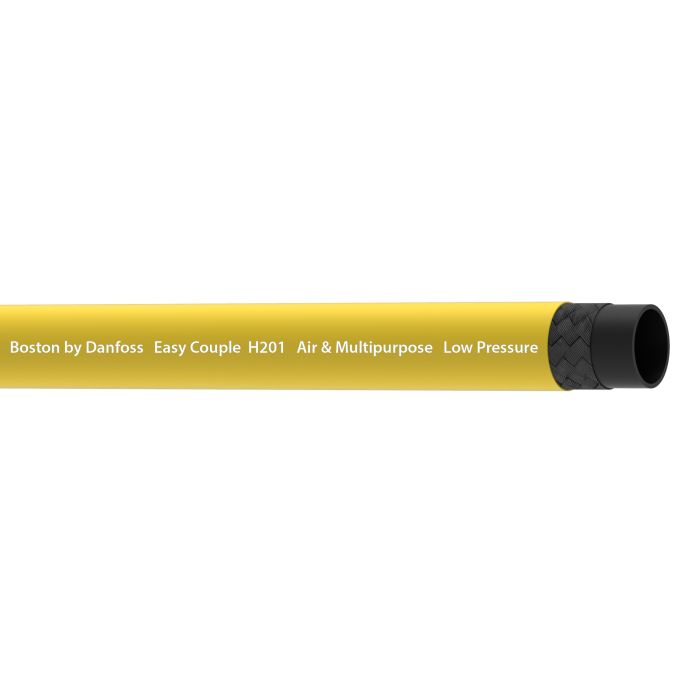

Danfoss / Eaton EASYCOUPLE YW 3/8ID 250PSI

Description & Features

This Eaton EASYCOUPLE YW hose is designed for air and multi-purpose applications. Constructed with a 1-ply braid reinforcement and a synthetic rubber cover, this hose offers standard abrasion resistance and MSHA approval for compliance.

The Danfoss / Eaton EASYCOUPLE YW 3/8ID 250PSI hose features a yellow cover and a conductive tube material. It is suitable for use with socketless, push-on couplings, B series, and quick disconnect fittings, and is certified to RMA Class A standards. It handles a minimum bend radius of 3 inches and a minimum working temperature of -40 degrees.

SKU: H20106YW-500R

Supplier Part Number (MPN): H20106YW-500R

Alternate Part Numbers: IGH20106YW-500R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number IGH20106YW-500R, Alternate Part Number MINO-00115X00902	Application Air and multi purpose.	Certifications RMA Class A	Color Yellow	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -6	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.65	Qualified Hose Fittings Socketless, Push-on couplings, B series, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H20106YW-500R	Tube Material Synthetic Rubber	Product Weight 65.00 lbs

Product Questions & Answers (1)

Question by: Harold A on Apr 23, 2025, 7:26 PM

Will this hose work alright with just regular push-on fittings?

Answer by: Customer Support on Apr 25, 2025, 4:20 PM

This hose is indeed suitable for use with socketless and push-on couplings, as well as B series and quick disconnect fittings.
