Danfoss / Eaton EASY COUPLE Hose

Description & Features

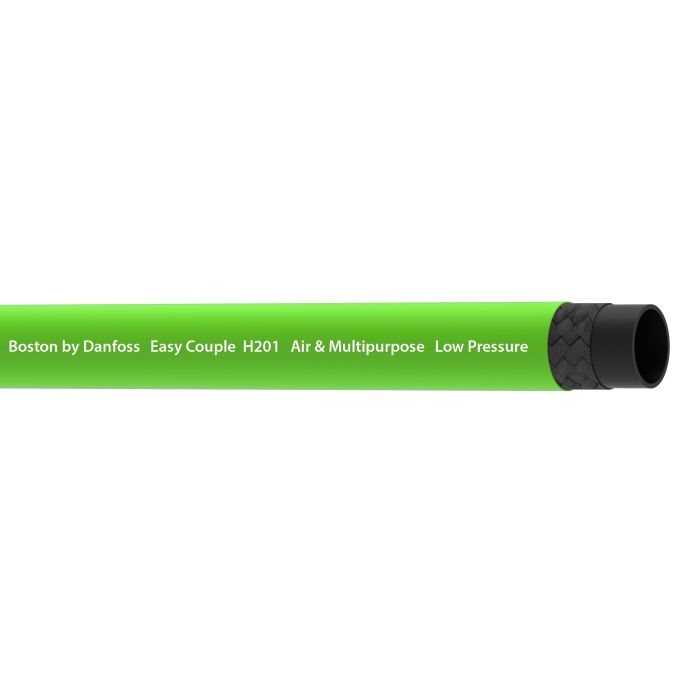

Rated for air and multipurpose industrial applications, the Danfoss / Eaton Easy Couple Hose is built with a synthetic rubber tube and cover over a single-ply textile braid reinforcement. The green cover carries a conductive construction and standard abrasion resistance, suited to environments where static dissipation and durability are practical requirements.

At a dash size of -8 with a 0.75-inch width and a minimum bend radius of 5 inches, this hose is compatible with socketless and push-on couplings, B-series fittings, and quick disconnect configurations. It holds RMA Class A certification and carries Msha approval under compliance IC-84/48, making it appropriate for use in mining and other regulated environments. The working temperature range extends down to -40°F, supporting reliable performance in cold-weather service. Lay line markings are applied via inkjet for clear identification along the hose length.

SKU: H20108GN-500R

Supplier Part Number (MPN): H20108GN-500R

Alternate Part Numbers: IGH20108GN-500R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number IGH20108GN-500R	Application Air and multi purpose.	Certifications RMA Class A	Color Green	Compliances MSHA IC-84/48\|MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -8	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 5	Minimum Bend Radius 5	Minimum Working Temperature -40	Product Width 0.75	Qualified Hose Fittings Socketless, Push-on couplings, B series, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H20108GN-500R	Tube Material Synthetic Rubber	Product Weight 0.13 lbs

Product Questions & Answers (1)

Question by: Dustin S on Aug 8, 2025, 12:44 PM

Can this hose handle cold weather without getting brittle?

Answer by: Customer Support on Aug 9, 2025, 7:01 PM

It's rated down to -40°F, so it should hold up fine in cold conditions.
