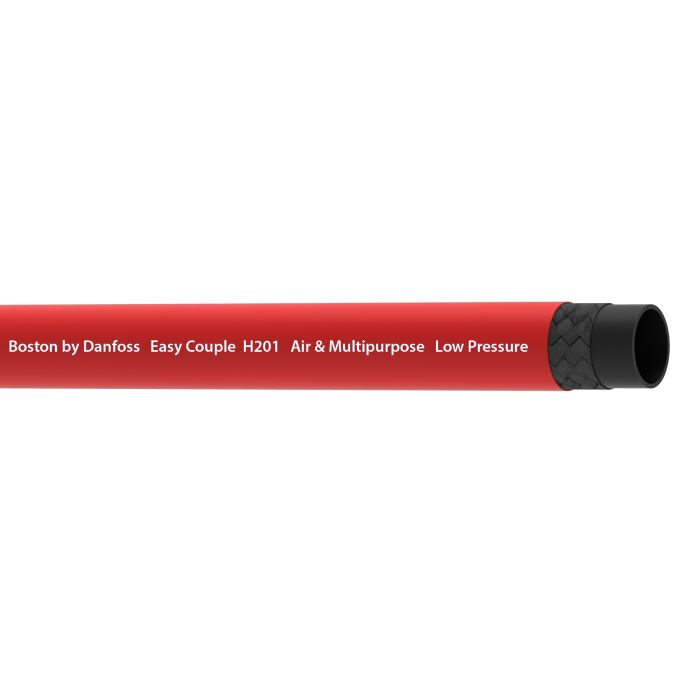

Danfoss / Eaton EASY COUPLE RED Hose

Description & Features

Rated for air and multi-purpose applications, this -8 dash size hose carries RMA Class A certification and meets MSHA IC-84/47 compliance standards, making it suitable for demanding industrial environments. The Danfoss / Eaton Easy Couple Red Hose is built with a synthetic rubber tube and cover, single-ply textile braid reinforcement, and a conductive construction. Its red cover is finished with an inkjet lay line for easy identification in the field. Compatible qualified fittings include socketless, push-on couplings, B series, and quick disconnect types. The hose has a minimum bend radius of 5 inches and is rated for service down to -40° minimum working temperature.

SKU: H20108RD-500R

Supplier Part Number (MPN): H20108RD-500R

Alternate Part Numbers: IGH20108RD-500R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number IGH20108RD-500R	Application Air and multi purpose.	Certifications RMA Class A	Color Red	Compliances MSHA Approved\|MSHA IC-84/47	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -8	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 5	Minimum Bend Radius 5	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.75	Qualified Hose Fittings Socketless, Push-on couplings, B series, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H20108RD-500R	Tube Material Synthetic Rubber	Product Weight 75.00 lbs

Product Questions & Answers (1)

Question by: Janice B on Dec 29, 2025, 9:27 PM

Can I use this with, like, regular push-on fittings or does it need something special?

Answer by: Customer Support on Dec 31, 2025, 11:13 AM

This hose works with socketless, push-on couplings, B series, and quick disconnect fittings.
