H201 Easy Couple Gen Pur

Description & Features

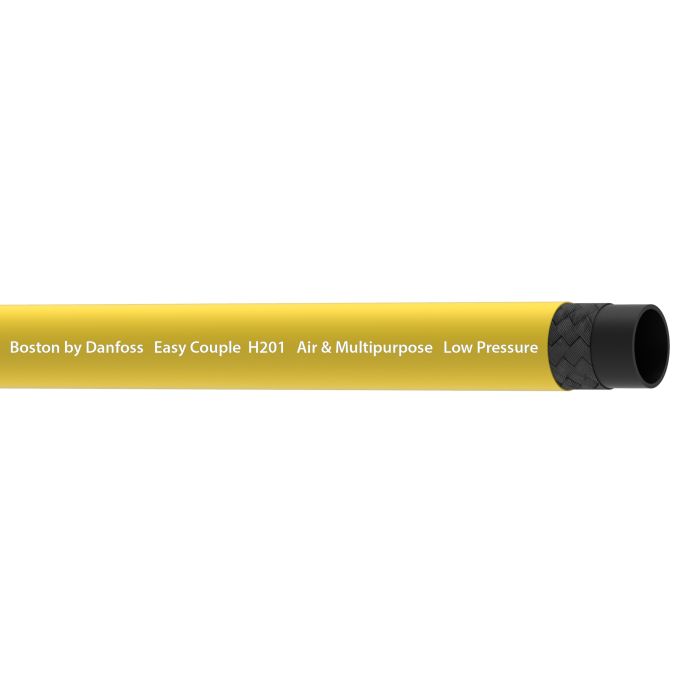

Designed for air and multi-purpose industrial applications, the H201 Easy Couple Gen Pur is a flexible hose built around a synthetic rubber tube and cover with single-ply textile braid reinforcement. The conductive construction supports safe use in environments where static dissipation is a requirement, and the yellow cover provides straightforward visual identification in mixed-hose installations.

Rated to RMA Class A and MSHA Approved, this hose meets recognized industry standards for both performance and workplace safety. A minimum working temperature of -40°F supports reliable service in cold-weather or refrigerated environments. Compatible with socketless and push-on couplings, B-series fittings, and quick-disconnect connections, it integrates readily with common industrial coupling systems. The inkjet lay line aids in routing and identification during installation.

SKU: H20110YW

Supplier Part Number (MPN): H20110YW

Alternate Part Numbers: IGH20110YW

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number IGH20110YW, Alternate Part Number MINO-00115X00933	Application Air and multi purpose.	Certifications RMA Class A	Class WEB-ITEM	Color Yellow	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -10	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 6	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.93	Qualified Hose Fittings Socketless, Push-on couplings, B series, Quick disconnect	Reinforcement Material Textile	Supplier Part Number H20110YW	Tube Material Synthetic Rubber	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Wayne G on Sep 17, 2025, 8:21 AM

Can you use regular clamps with this hose, or do you need something special?

Answer by: Customer Support on Sep 18, 2025, 6:50 PM

This hose is compatible with socketless and push-on couplings, B-series fittings, and quick-disconnect connections, so it integrates readily with common industrial coupling systems. You should be good to go with standard options.
