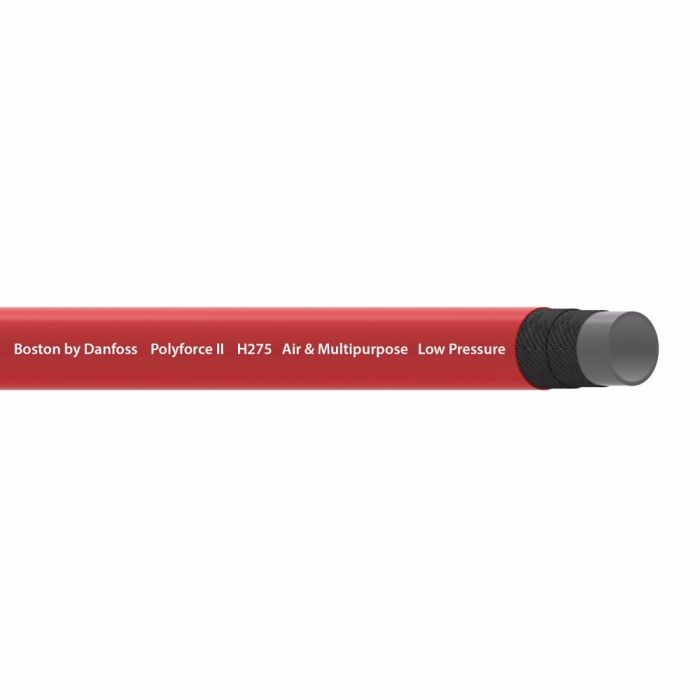

Danfoss / Eaton Polyforce RED Hose

Description & Features

The Danfoss / Eaton Polyforce RED Hose is designed for general-purpose, low-pressure applications involving air and water. Constructed with a 1 Ply Braid reinforcement and a Polyvinyl Chloride (PVC) tube, this conductive hose offers premium abrasion resistance and is pin-pricked.

This red Polyforce hose is certified to SAE J517 standards and has a minimum bend radius of 0.63 inches. It is suitable for use with E, Z, 265 P, 1A, Barbed inserts, Quick acting or long shank, and Quick disconnect qualified hose fittings. It can operate in temperatures as low as -10 degrees.

SKU: H27504RD-600R

Supplier Part Number (MPN): H27504RD-600R

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00115X00563	Application General purpose, low pressure, air and water.	Certifications SAE J517	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC	Cover Style Pin-Pricked	Dash Size -4	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 0.63	Minimum Bend Radius 0.63	Minimum Working Temperature -10	NMFC 70	Product Width 0.50	Qualified Hose Fittings E, Z, 265 P, 1A, Barbed inserts, Quick acting or long shank, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H27504RD-600R	Tube Material Polyvinyl Chloride (PVC)	Product Weight 0.03 lbs

Product Questions & Answers (1)

Question by: Billy G on Oct 15, 2025, 3:53 PM

Can this hose handle being bent around stuff pretty good?

Answer by: Customer Support on Oct 16, 2025, 7:37 PM

It has a minimum bend radius of 0.63 inches, so it's reasonably flexible for its size.
