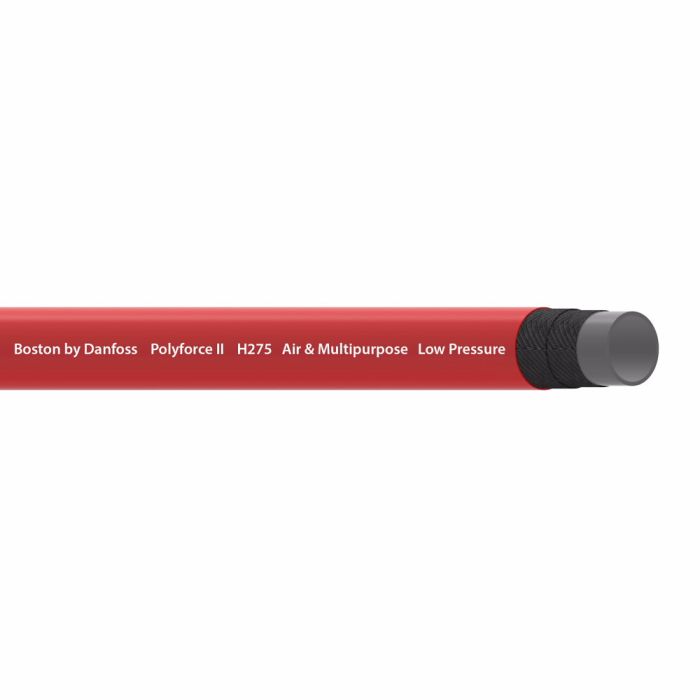

DANFOSS / EATON POLYFORCE II 3/8 ID 250 PSI

Description & Features

Rated for 250 PSI working pressure, the Danfoss / Eaton Polyforce II is a 3/8" ID multipurpose industrial hose designed for general-purpose air and water service in low-pressure applications. The tube and cover are both constructed from polyvinyl chloride (PVC), with a single-ply textile braid reinforcement providing reliable structural support at this pressure range. The pin-pricked, conductive black cover offers premium abrasion resistance and meets SAE J517 certification standards.

Compatible qualified fittings include E, Z, 265P, 1A, barbed inserts, quick-acting or long-shank types, and quick-disconnect styles, giving this hose broad adaptability across common industrial connections. A minimum bend radius of 1" and a minimum working temperature of -10°F make it suitable for a range of service environments. With a legacy of industrial hose manufacturing dating back to 1870, Danfoss Power Solutions engineered this line for consistent safety and reliability in everyday industrial service.

SKU: H27506BK-500R

Supplier Part Number (MPN): H27506BK-500R

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00115X00567	Application General purpose, low pressure, air and water.	Certifications SAE J517	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC	Cover Style Pin-Pricked	Dash Size -6	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 1	Minimum Bend Radius 1	Minimum Working Temperature -10	Product Width 0.63	Qualified Hose Fittings E, Z, 265 P, 1A, Barbed inserts, Quick acting or long shank, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H27506BK-500R	Tube Material Polyvinyl Chloride (PVC)	Product Weight 0.05 lbs

Product Questions & Answers (1)

Question by: Neal M on Jul 17, 2025, 11:07 AM

How flexible is this hose? I need something that can bend around some tight corners.

Answer by: Customer Support on Jul 19, 2025, 10:50 AM

The minimum bend radius is 1 inch, so it's fairly flexible for its size.
